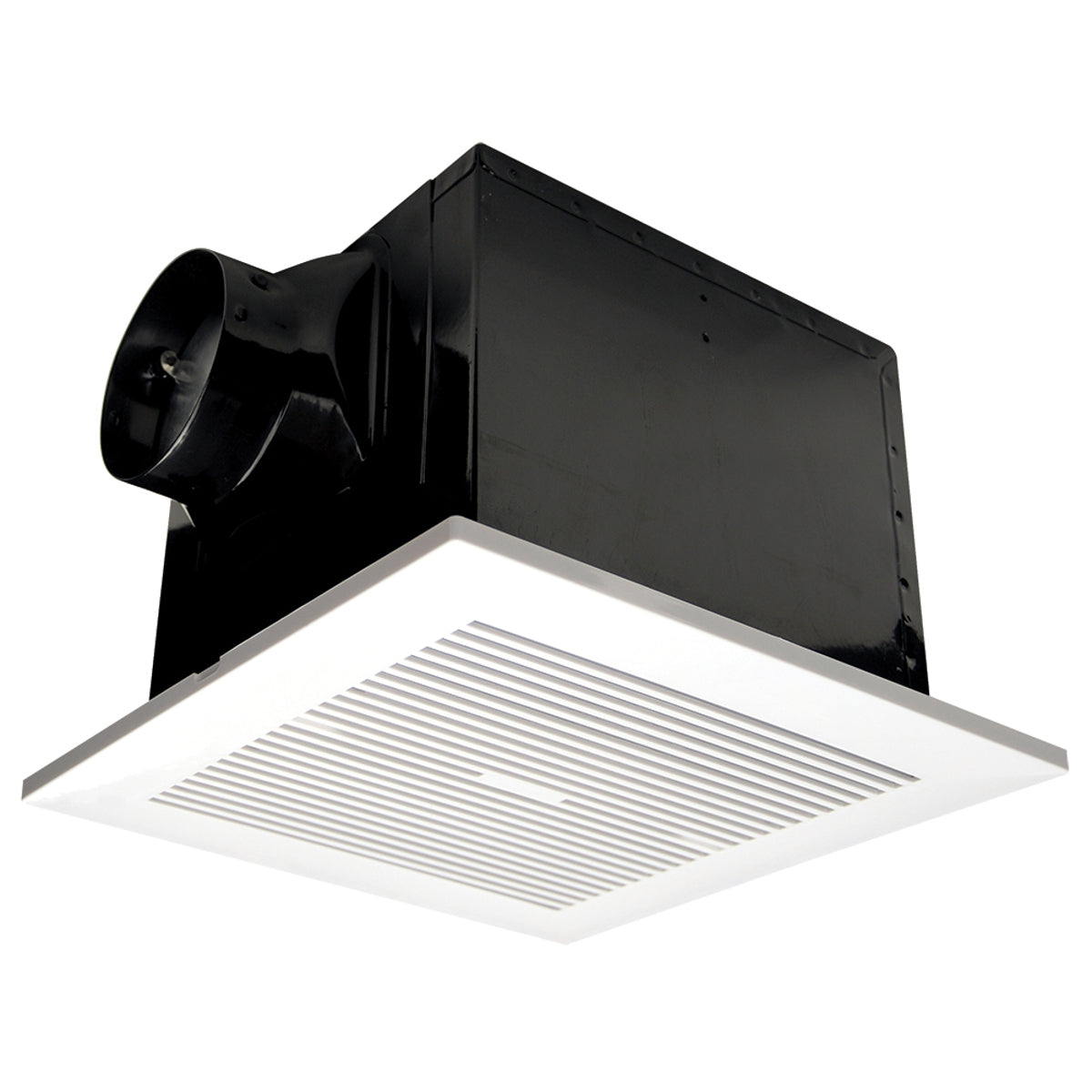

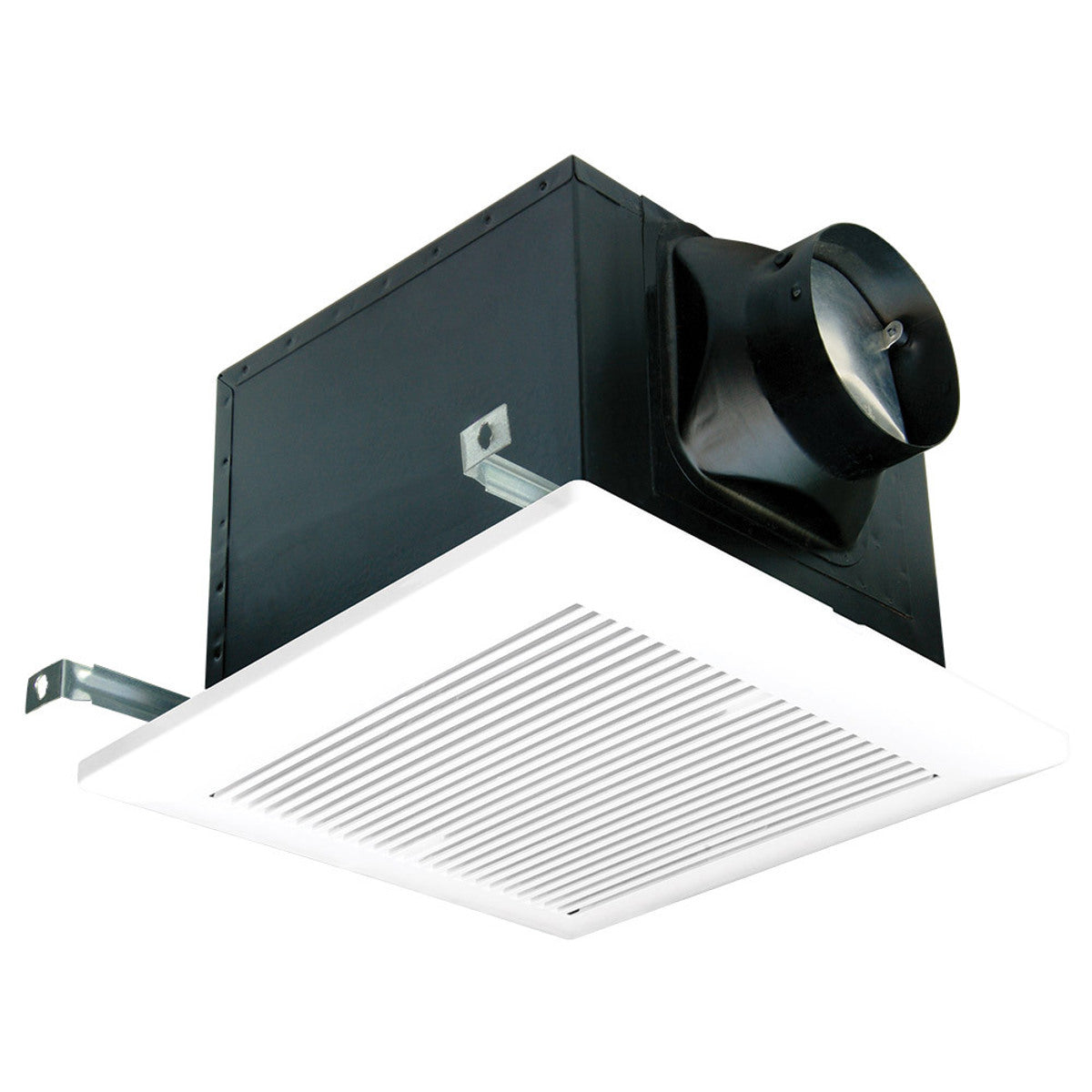

Air King BFC90 90 CFM Energy Star Certified Deluxe Quiet Exhaust Fan 4 Inch Metal Duct Adapters

Product Description

The AIR KING BFC90 90 CFM Energy Star Certified Deluxe Quiet Exhaust Fan features 4 Inch Metal Duct Adapters. This exhaust fan provides ventilation for bathrooms, laundry rooms, and other areas needing ventilation. The energy efficient motor is suitable for continuous operation and can be used to comply with ASHRAE 62.2 standards.

• ENERGY STAR certified
• Easily installs using included adjustable hanging brackets
• 4 inch round metal duct connector with damper protects against backdrafts

Product Highlights

This quiet exhaust fan is UL listed for installation over a tub or shower on a GFCI circuit and is HVI Certified. Perfect for use in mid size to larger bathrooms.

Product Information

Standard Information

• Brand: AIR KING
• Manufacturer Part Number: BFC90
• Country of Origin: Import

Technical Specifications

• Catalog Number: BFC90
• Manufacturer: Air King Ventilation
• Brand: Air King
• Mounting: Hanger Bars
• Speed: 90
• Standard: ENERGY STAR Certified
• Wattage: 19 Watts
• CFM @ .1 SP: 90
• CFM @ .25 SP: 75
• Sones @ .1 SP: 1.0
• Sound Level: Very Quiet
• Effective Ventilation Area: 90 to 115 sq. ft.
• ASHRAE 62.2 Ventilation: Whole House; Local
• Duct Size: 4 Inch Round
• Collar / Damper: Metal
• Housing: Metal
• Fan Speed: 945 RPM
• Amps: 0.2 Amps
• Grill Dimensions: 11-7/8" D x 11-7/8" W
• Fan Housing Dimensions: 9" D x 9" W x 7-7/8" H
• Certifications: Energy Star, Title 24 Compliant
• CALGreen: Rooms other than bathrooms
• Housing Material: Galvanized Steel
• Grille Material: Polymeric
• Grille Length: 11-7/8 in
• Grille Width: 11-7/8 in
• Housing Length: 9 in
• Housing Width: 9 in
• Housing Height: 7-7/8 in
• Mounting Type: Ceiling
• Power Rating: 19 W
• Voltage Rating: 120 V AC
• Frequency Rating: 60 Hz
