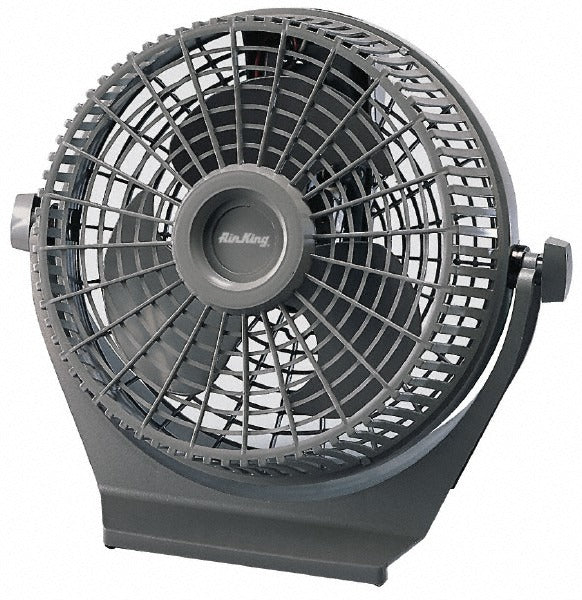

Air King AK9525 Pivot Fan 430 Cfm 9 Inch 2 Speed

Product Description

The AIR KING AK9525 is a 9-inch pivot fan designed for spot ventilation and air circulation in residential and light commercial settings. Running on 110 volts at 60 Hz with a single-phase motor, it delivers up to 430 CFM of airflow across two selectable speeds. The adjustable pivot head allows technicians and installers to direct airflow precisely where it is needed. Weighing 4.1 pounds, this unit is compact enough for tight spaces while moving meaningful air volume. It is well suited for HVAC service work, supplemental ventilation tasks, and general shop or utility applications.

The AK9525 is intended for use in environments where directional airflow control is needed without a fixed-mount solution. Its two-speed operation allows the user to dial in airflow for quieter low-speed runs or higher-volume circulation at max CFM. The single-phase, 60 Hz design fits standard North American electrical infrastructure. This fan is typically installed by HVAC technicians, electricians, or facilities maintenance personnel in residential homes, service shops, or light commercial spaces.

Key Features

• 430 CFM maximum airflow for effective spot ventilation
• 9-inch fan blade diameter for compact, directed air movement
• Two-speed operation at 0.390 amps (low) and 0.570 amps (high)
• Pivot head design allows directional airflow adjustment
• Single-phase, 110-volt, 60 Hz motor fits standard North American circuits
• Lightweight at 4.1 pounds for easy repositioning and installation

Compatibility

Designed as an OEM-style replacement or direct-use pivot fan for residential and light commercial ventilation applications requiring a 9-inch, 110-volt, single-phase unit.

Installation Notes

Installation should be performed by a qualified electrician or HVAC technician in accordance with applicable NEC guidelines. Disconnect and lock out power to the circuit before making any electrical connections. Verify that the supply voltage and amperage capacity match the fan's rated requirements before energizing. Do not obstruct the pivot head adjustment mechanism after mounting, as this limits the unit's directional functionality.
