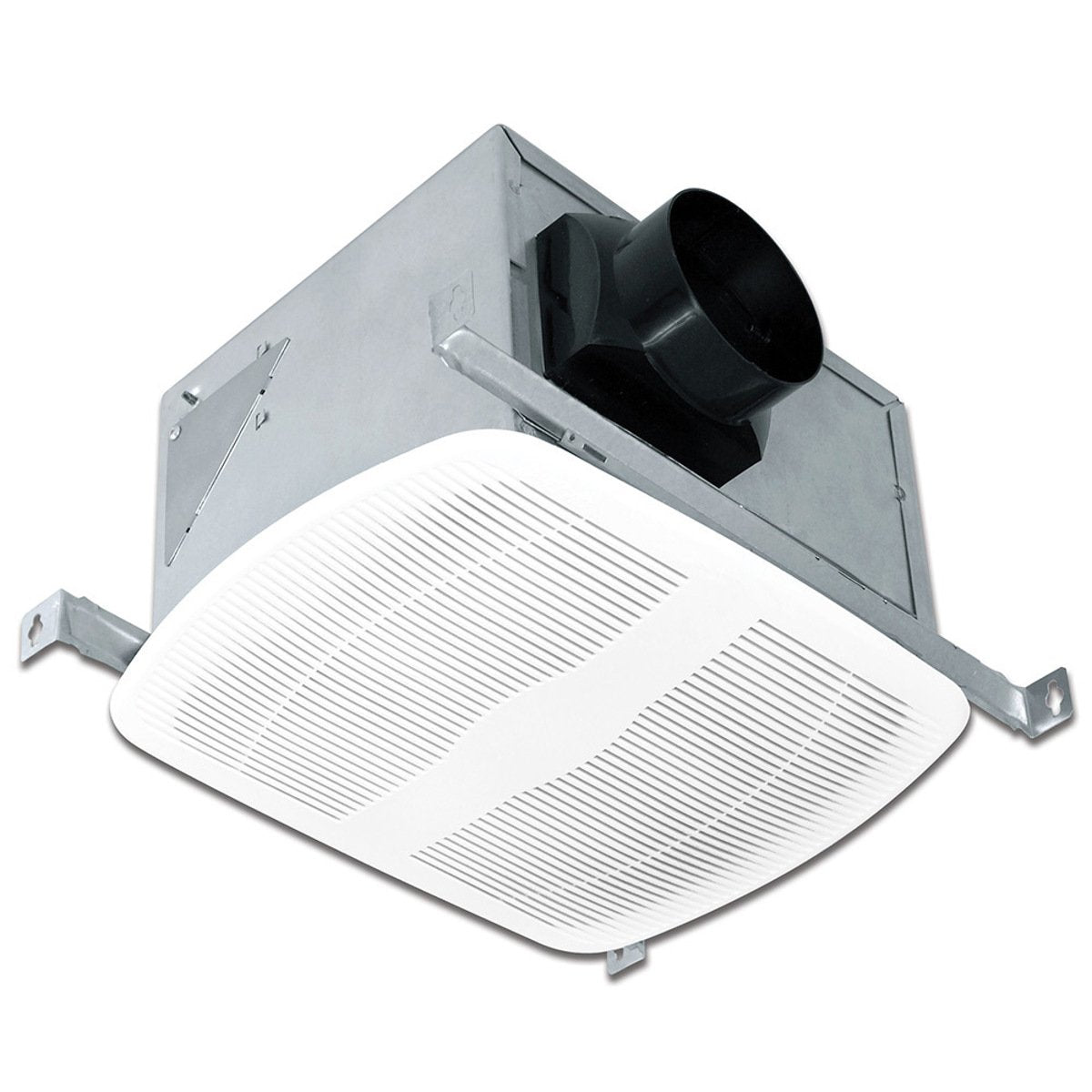

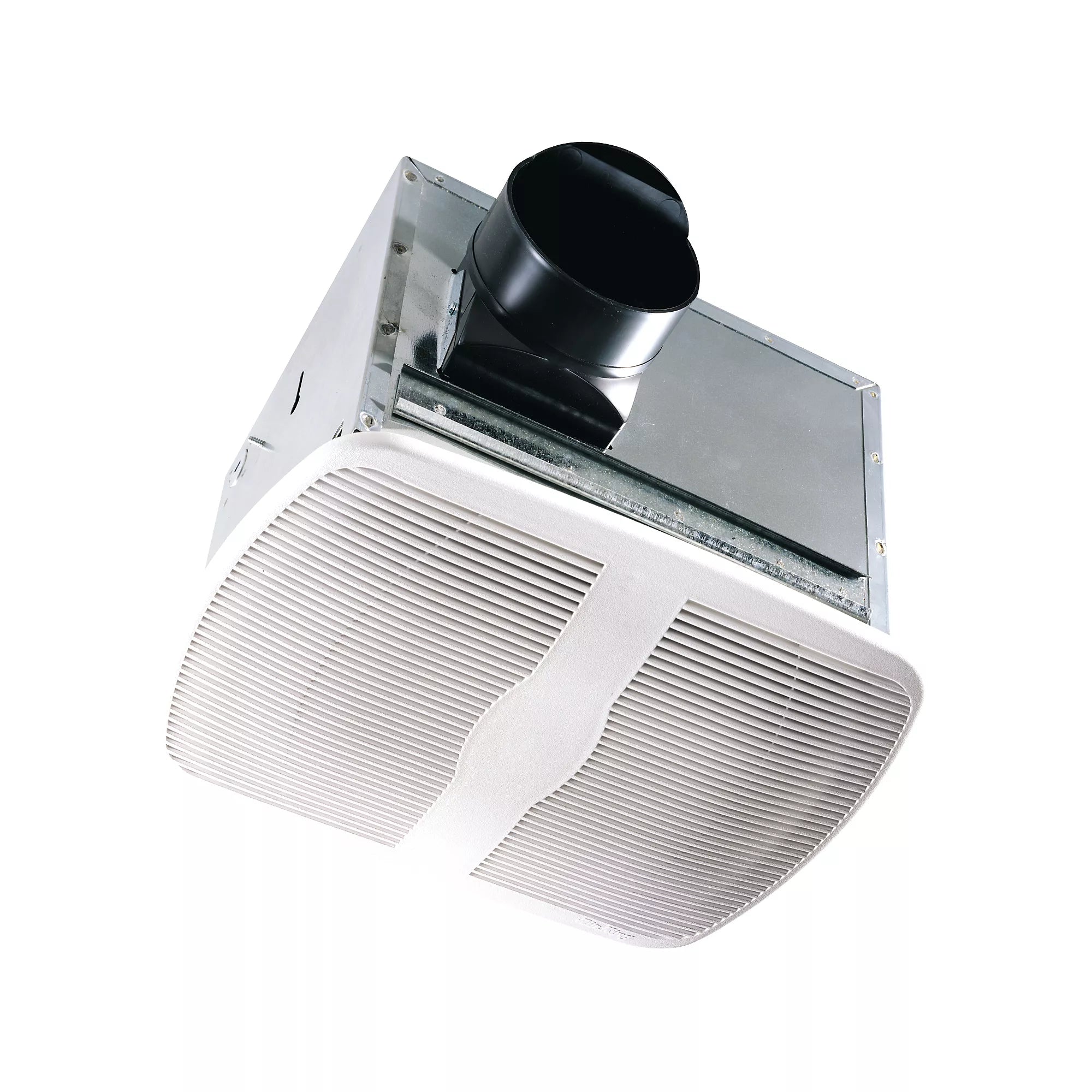

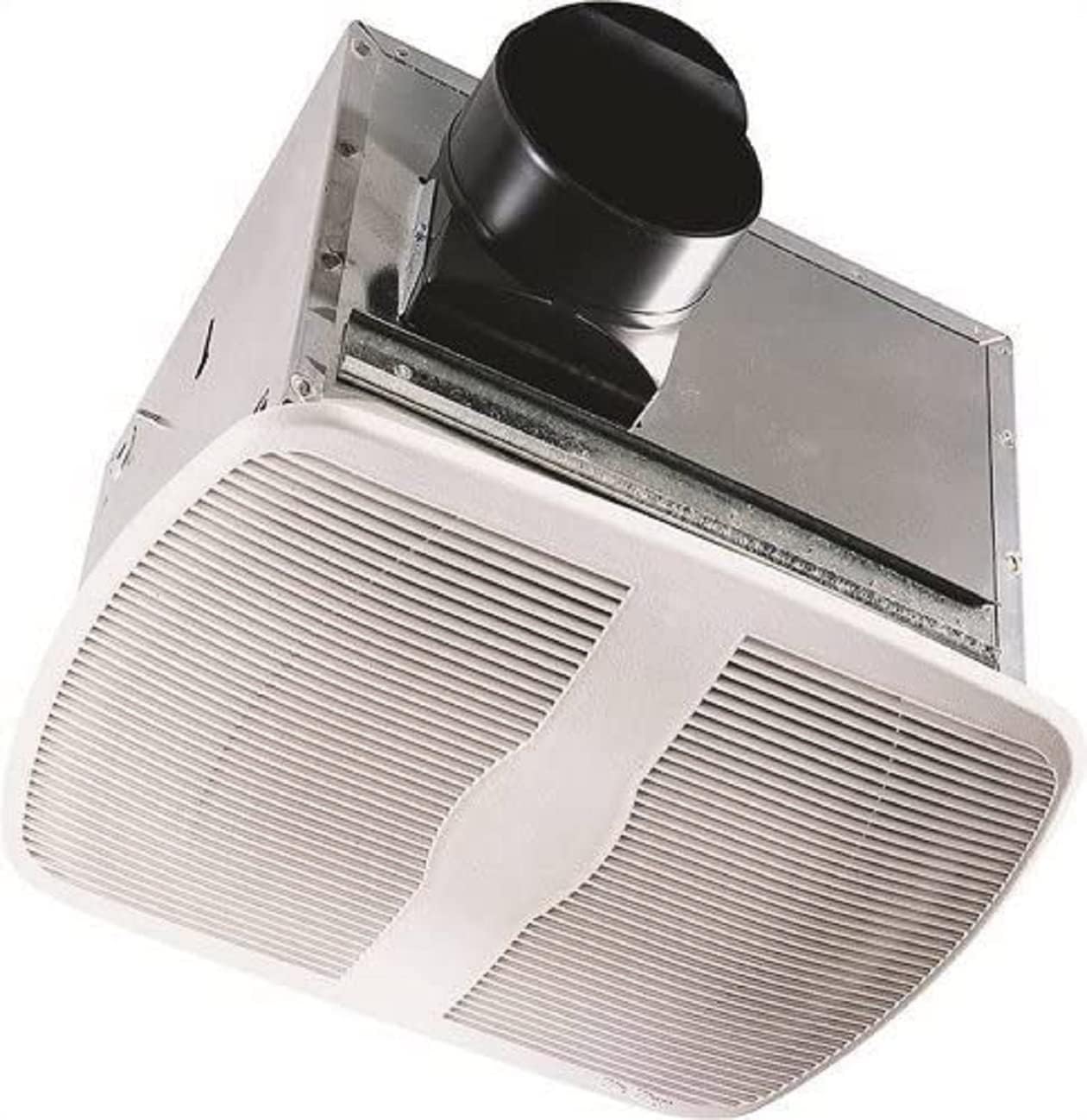

Air King AK80 bathroom exhaust fan ceiling mount 80 CFM 4 inches

Product Description

The Air King AK80 is an 80 CFM bathroom exhaust fan with a low-profile grille that blends into the ceiling. Simple to install with adjustable hanging brackets, it features a 4-inch plastic duct collar with a built-in damper. At 1.5 sones, the AK80 provides effective ventilation for areas up to 100 square feet.

• Quiet operation at 1.5 sones
• Includes a non-metallic backdraft damper
• Features a low-profile grille

Product Highlights

Provides exceptional ventilation in most home applications. Energy Star certified.

Product Information

Standard Information

• Brand: AIR KING
• Manufacturer Part Number: AK80
• Country of Origin: United States

Technical Specifications

• Air Flow (CFM): 80
• UPC: 083162280121
• RPM: 1033 RPM
• Voltage: 120 Volts
• UL Listed: Yes
• Product Width: 11 Inches
• Type: Bathroom Fan
• Product Height: 7 7/8 Inches
• Product Length: 13 3/4 Inches
• Frequency: 60 Hz
• Duct Connection: 4 Inches
• Current Draw: 0.3 Amps
• Maximum Air Flow: 80 CFM
• Mount Type: Ceiling
• Maximum Sound Level: 1.5 Sones
• Country of Origin: United States
• Energy Star Listed: Yes
• Power Consumption: 26 Watts
• Includes Light: No
• Product Category: Fans
• Style: Modern
• Room Type: Bathroom
• Collection: Bathroom,Spring-loaded
• Model Name: AK80
• Finish Type: White
• Power Source: Corded Electric
• Blade Material: Plastic
• Assembled Width: 10.88 inches
• Assembled Height: 7.88 inches
• Assembled Length: 9.38 inches
• Air Flow Capacity: 80 Cubic Feet Per Minute
• Specification Met: Energy Star
• Batteries Included?: No
• Batteries Required?: No
• Electric fan design: Exhaust Fan
• Recommended Uses For Product: Exhausting
• Amps: 0.31
• Bearing Type: Ball
• Brand: Air King
• Cycle/Hertz: 60 Hz
• Duct Size: 4″ round
• Grille Color: White
• Grille Size (L x W): 11" x 13 3/4"
• Height: 7.875
• Housing Dimensions: 10-7/8 L x 9-3/8 W x 7-7/8 in. H
• Length: 9.375
• Phase: Single
• Sones: 1.5
• Voltage Rating: 120
• Watts: 27.6
• Wheel Material: Plastic
• Width: 10.875
• Catalog Number: AK80
• Manufacturer: Air King
• Mounting: Hanger Bars
• Speed: 80
• Standard: ENERGY STAR Certified
• Model / MPN: AK80
• Number of Items: 1.0
• Air Flow Rate: 80 cfm
• Current Rating: 0.3 A

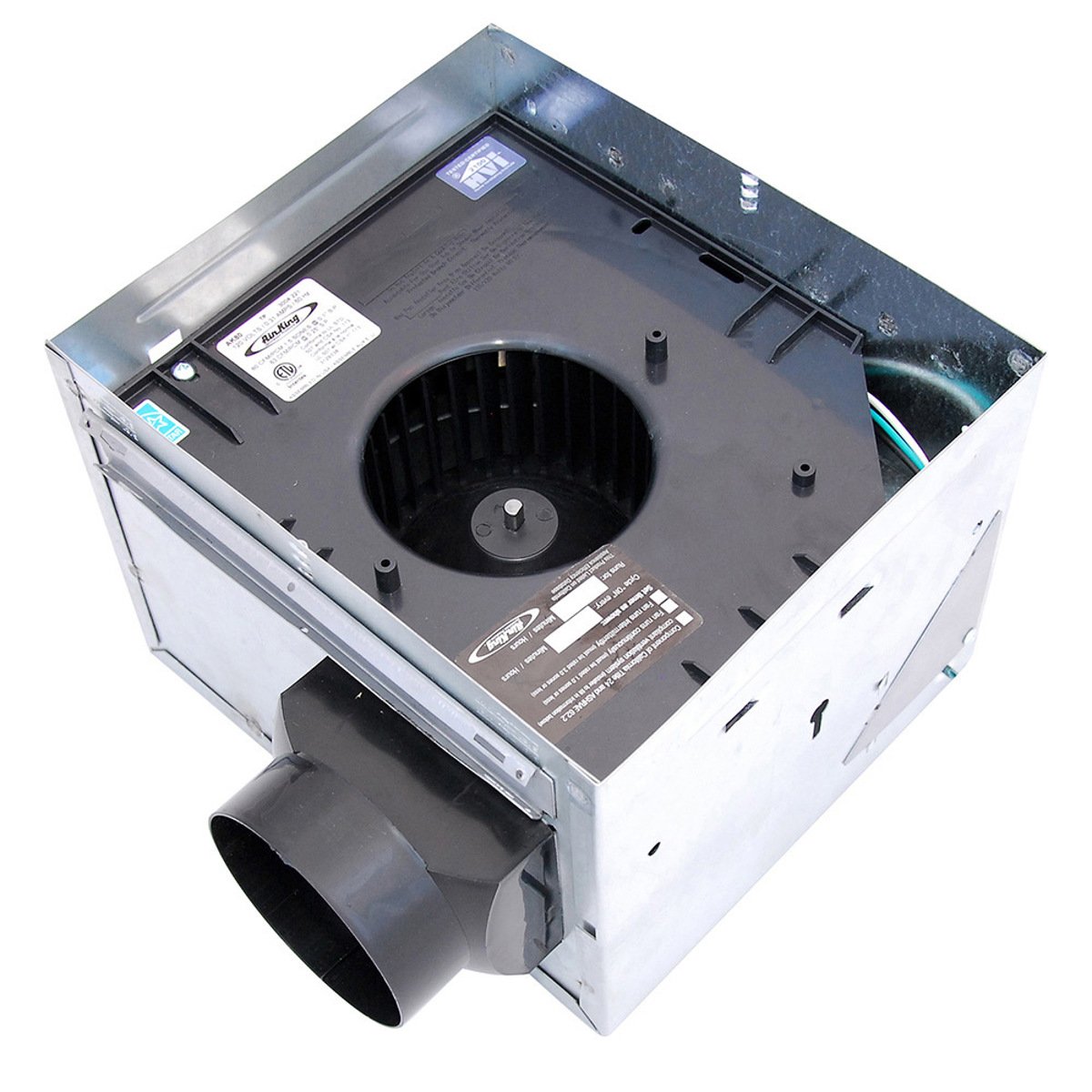

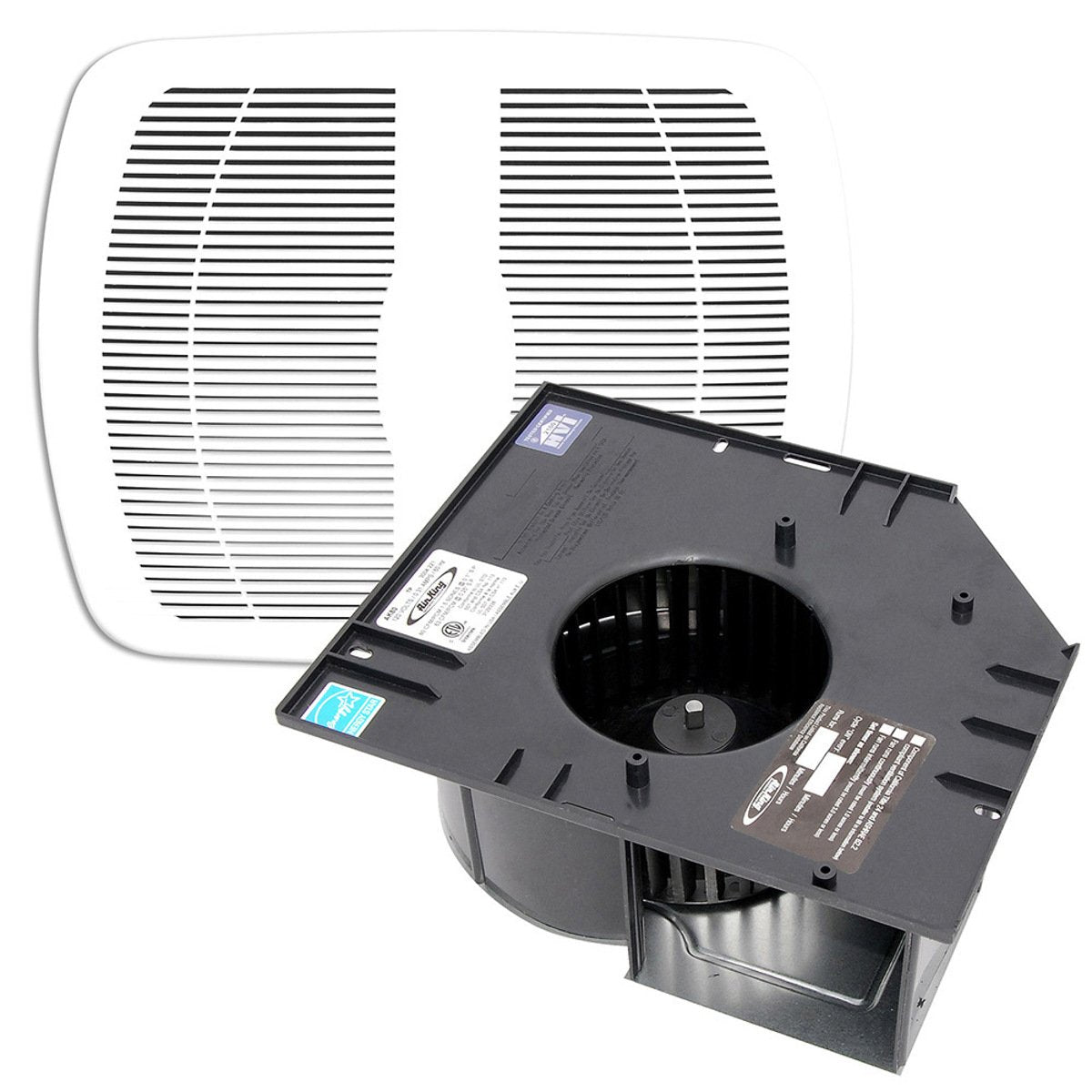

• Includes: Blower, Damper and Duct Collar, Grill, Hanger Bars for Mounting
• Material: Metal
• Mounting Type: Hanger Bar
• Wattage Rating: 27.6 W
• GTIN: 0083162280121
• Model: AK80
• Number of Speeds: 1
• Ventilation System: Exhaust Fan
• Shape: Rectangle
• Item Height: 7.875
• Item Diameter: 4 in
• Origin: United States
• Product Weight (lb.): 10
• Housing Length (in.): 10.875
• Special Features: Energy Star RatedEnergy Star Rated
• Blade Orientation: Medium
• Energy Star: Compliant
• Duct Compatible Sizes: 4 in
• Duct Dia.: 4
• Amperage (amps): 0.3
• Item Depth: 9.625
• Certifications and Listings: HVI Certified,UL Listed
• Air Flow Volume: 80 CFM
• Voltage (volts): 120
• Product Length (in.): 13.75
• Smart Home Compatibility: No, Yes, Quiet
• Wattage (watts): 36
• Finish: White
• Use: Very Simple and Easy to Use
• Product Width (in.): 11
• Included: Hardware
• Maximum Room Size (sq. ft.): 80
• Room Size: Medium Room Fan
• Operating Sound Rating: Quiet
• Series: AK Series
• Packaging: 1 per Pack
• Grill Size: 11 in. L x 13-3/4 in. W
• Package Quantity: 1 per Pack
• Effective Ventilation Area: 80 to 100 sq. ft.
• ASHRAE 62.2 Ventilation: Local
• ENERGY STAR certified: YES
• Can be used to Comply with California Title 24 requirements: YES
• CALGreen: Rooms other than bathrooms
• Collar / Damper: Plastic
• Housing: Metal
• Number of Blades: 3
• Indoor Outdoor Usage: Indoor
• Control Method: Remote
• Standby Power Shutoff: Efficient
• Is Product Cordless: No
• Number of Power Levels: 3
• CFM @ .1 SP: 80
• CFM @ .25 SP (High-speed): 68
• Sones @ .1 SP: 1.5
• Sound Level: Quiet
