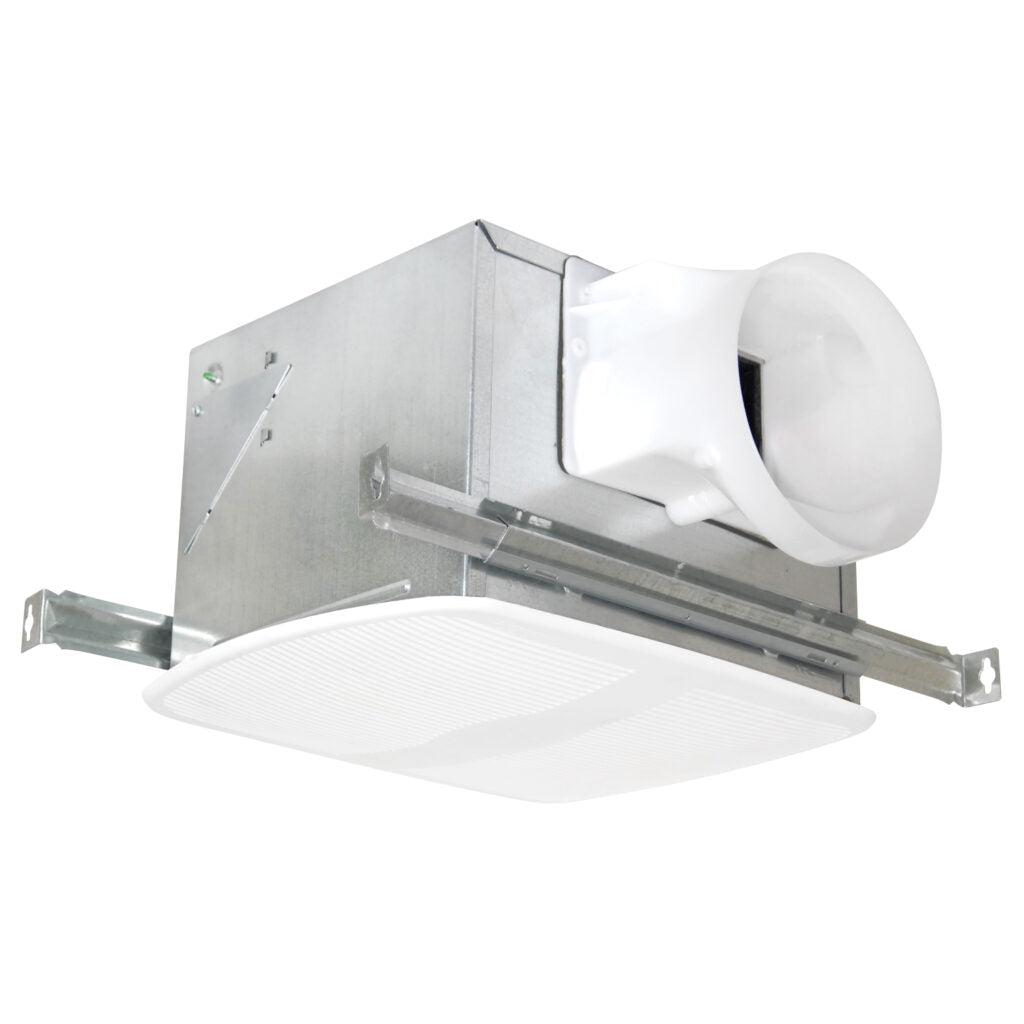

Air King AK100LS6H Energy Star Certified Humidity Sensing Deluxe Quiet Exhaust Fan 100 CFM

Product Description

The Air King AK100LS6H series humidity sensing deluxe quiet exhaust fan provides ventilation for bathrooms and laundry rooms. The integrated humidistat senses the humidity level and turns the fan on until the humidity level is below the preset percentage, up to 80% relative humidity. The energy efficient motor is suitable for continuous operation and complies with ASHRAE 62.2 standards.

• Excellent ASHRAE 62.2 solution
• ENERGY STAR certified
• Can be used to comply with California Title 24 requirements as well as CALGreen

Product Highlights

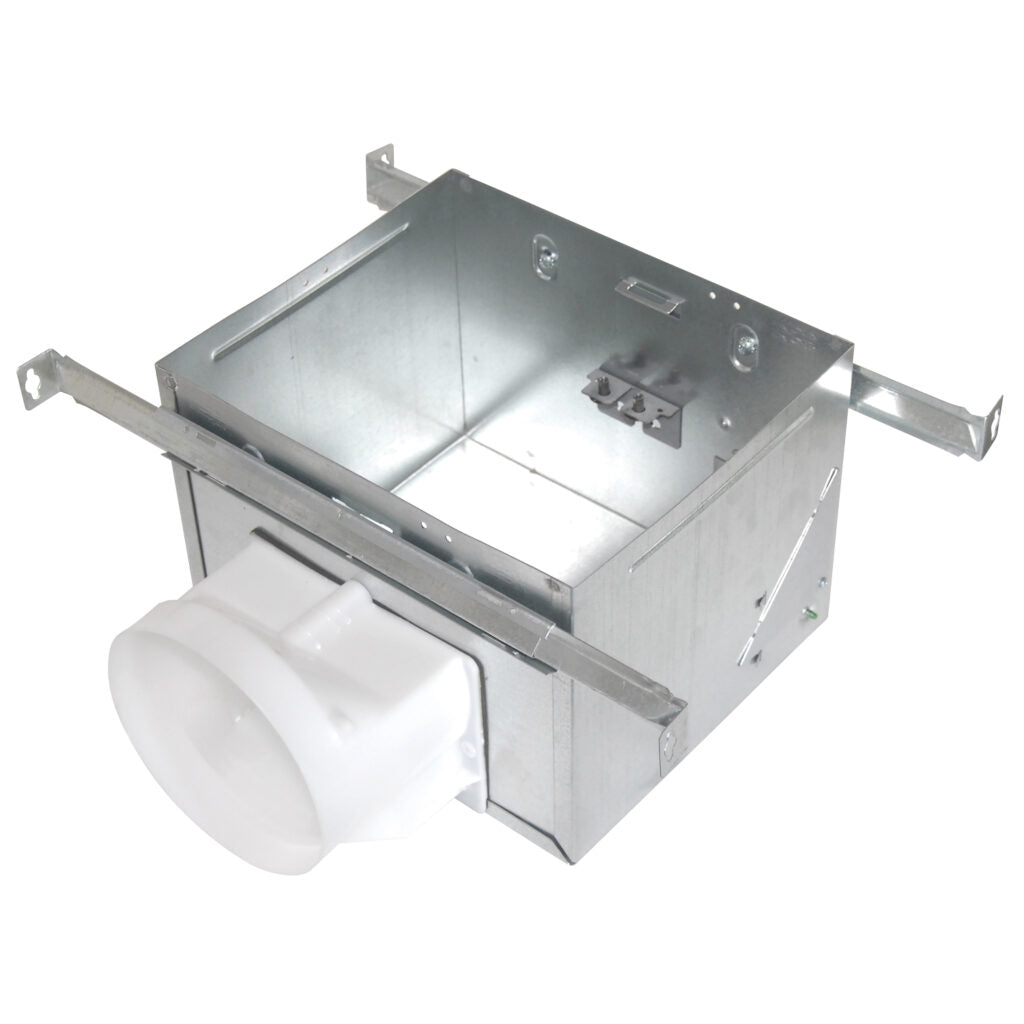

This exhaust fan features adjustable hanging brackets for easy installation and a 6 inch round plastic duct connector with damper to protect against backdrafts and ensure quiet operation.

Product Information

Standard Information

• Brand: AIR KING
• Manufacturer Part Number: AK100LS6H
• Country of Origin: USA

Technical Specifications

• MODEL: AK100LS6H: 100 CFM @ 1.0 Sones
• CFM @ .1 SP: 100
• CFM @ .25 SP: 78
• Sones @ .1 SP: 1.0
• Sound Level: Quiet
• Watts: 26.6
• Effective Ventilation Area: 100 to 125 sq. ft.
• ASHRAE 62.2 Ventilation: Whole House/ Local
• ENERGY STAR certified: YES
• Can be used to Comply with California Title 24 requirements: YES
• CALGreen: Compliant for use in bathrooms or whole building ventilation
• Duct Size: 6 inch round
• Collar / Damper: Plastic
• Mounting: Hanger Bars
• Housing: Metal
• MPN: AK100LS6H
• Fan Speed: 914 RPM
• Amps: 0.3 Amps
• Grill Dimensions: 13-3/4" D x 11" W
• Fan Housing Dimension: 10-7/8" D x 9-3/8" W x 7-7/8" H
• Certifications: Energy Star, Title 24 Compliant
• Power Source: Electric
• Number of Speeds: 1
• Vent Style: Circular
• Voltage: 120 V
• Item Depth: 11 in
• Width: 9.375 in
• Item Height: 7.875 in
• Item Diameter: 6 in
• Sones: 1.0
• Wattage: 27W
