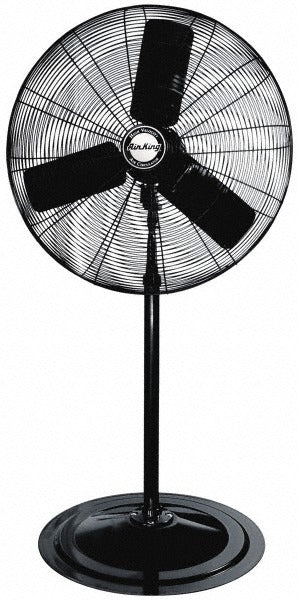

Air King 9135G Oscillating Pedestal Fan 1/4 Hp 7400 Cfm

Product Description

The AIR KING 9135G is a heavy-duty oscillating pedestal fan built for industrial and commercial ventilation applications. Powered by a direct-drive 1/4 hp motor, it delivers up to 7,400 CFM through a 30-inch blade on a single-phase, 120-volt circuit. Three selectable speeds allow the operator to balance airflow against noise level, with shaft speeds ranging from 822 RPM to 1,110 RPM. Weighing 83 pounds, this unit is designed for permanent or semi-permanent placement in warehouses, manufacturing floors, loading docks, garages, and large commercial spaces where sustained high-volume air movement is required. Installation is typically handled by an electrician or facility maintenance technician.

The 9135G is suited for large open areas where spot cooling or general air circulation is needed across a wide sweep. Its oscillating head broadens the coverage zone without repositioning the unit. The 10-foot cord provides reach to standard 120-volt outlets. Single-phase power makes it compatible with standard commercial and light-industrial electrical service without requiring three-phase infrastructure.

Key Features

• 7,400 CFM maximum airflow for high-volume ventilation in large spaces
• 30-inch blade diameter for broad air coverage
• Oscillating head increases effective sweep area without moving the unit
• Three-speed direct-drive motor with speed range of 822 to 1,110 RPM
• 10-foot power cord for flexible placement near standard outlets
• ETL Listed, NEMA MG-1, OSHA, and UL 507 compliant

Compatibility

Designed for use on single-phase 120-volt circuits in industrial, commercial, and large residential applications where high-CFM pedestal fan ventilation is required.

Installation Notes

This fan should be installed by a qualified electrician or facilities technician in accordance with applicable NEC requirements. Verify the circuit can support 2.04 amps at 120 volts before connecting. Place the unit on a flat, level surface and confirm the pedestal locking mechanism is fully engaged before operation. Inspect blade guards and all fasteners before each use in compliance with applicable OSHA standards.
