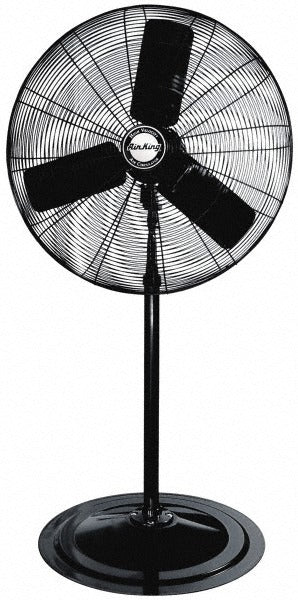

Air King 9130G Pedestal Fan 1/4 Hp 7400 Cfm 30 Inch

Product Description

The AIR KING 9130G is a heavy-duty, non-oscillating pedestal fan built for industrial and commercial ventilation applications. Powered by a 1/4 HP direct-drive motor, it moves up to 7,400 CFM through a 30-inch blade, making it a reliable airflow solution in large open spaces such as warehouses, manufacturing floors, loading docks, and agricultural buildings. The unit runs on single-phase 120-volt power, draws 2.04 amps, and offers three selectable speeds with a maximum of 1,110 RPM and a minimum of 822 RPM. Installation is handled by HVAC and mechanical contractors or qualified maintenance personnel in commercial and industrial settings.

The 9130G is suited for permanent or semi-permanent ventilation setups where high-volume airflow is needed without oscillation. Its direct-drive design reduces mechanical complexity and maintenance intervals compared to belt-driven alternatives. The 10-foot cord provides adequate reach from a standard 120-volt outlet to the mounting position. This fan is commonly deployed in spot-cooling applications, general exhaust-assist roles, and evaporative cooling configurations in large open bays or warehouses.

Key Features

• 7,400 CFM maximum airflow capacity via 30-inch direct-drive blade
• Three selectable speeds: 822 RPM minimum to 1,110 RPM maximum
• Single-phase 120-volt operation at 2.04 amps for standard outlet compatibility
• Non-oscillating fixed-position head for directed, sustained airflow
• 10-foot power cord for flexible positioning on the floor
• ETL Listed, NEMA MG-1, OSHA, and UL 507 compliant

Compatibility

Designed for use on standard single-phase 120-volt circuits in industrial, commercial, and agricultural ventilation applications requiring high-volume, fixed-direction airflow.

Installation Notes

Installation of the 9130G is typically performed by qualified maintenance technicians or mechanical contractors familiar with industrial ventilation equipment. Verify that the supply circuit is rated for single-phase 120-volt service and that the outlet and cord connection are kept clear of standing water and wet surfaces. Confirm the pedestal base is positioned on a flat, stable surface and that the fan head is securely locked at the desired tilt angle before energizing. Inspect the blade guard for secure attachment before operation per applicable OSHA ventilation equipment guidelines.
