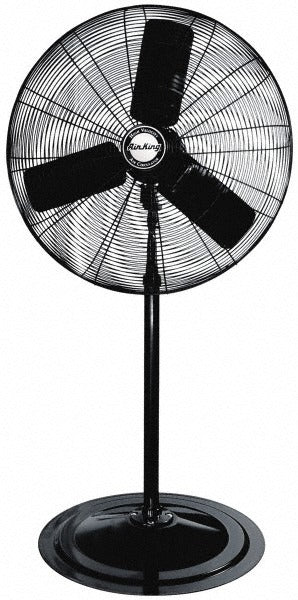

Air King 9130 Pedestal Fan 7400 Cfm 30 Inch 1/4 Hp

Product Description

The AIR KING 9130 is a heavy-duty, non-oscillating pedestal fan built for industrial and commercial ventilation applications. Powered by a direct-drive 1/4 HP motor, it moves up to 7,400 CFM through a 30-inch steel blade assembly, making it effective for large open spaces such as warehouses, workshops, loading docks, and manufacturing floors. The fan runs on 120 volts single-phase power and offers three speed settings with a maximum speed of 1,040 RPM and a minimum of 860 RPM. It ships unassembled and includes the base, pole, assembly hardware, grills, motor with power cord, fan head, blade, and user manual. Installation is straightforward for any qualified technician or facilities maintenance professional.

The AIR KING 9130 is suited for permanent or semi-permanent installation in industrial, commercial, and agricultural environments where sustained high-volume airflow is needed. The non-oscillating design keeps airflow directed at a fixed target zone, which is common in spot-cooling applications on production lines, in equipment rooms, or at worker stations. The 10-foot power cord provides enough reach for most standard outlet placements without an extension cord. This fan is ETL Listed and meets OSHA standards, making it appropriate for regulated work environments.

Key Features

• 7,400 CFM maximum airflow through a 30-inch steel blade
• 1/4 HP direct-drive motor — no belt maintenance required
• 3-speed operation with RPM range of 860 to 1,040 RPM
• Non-oscillating fixed-direction airflow for targeted spot cooling
• ETL Listed and OSHA compliant for use in regulated work environments
• 10-foot power cord included; ships with full hardware kit for field assembly

Compatibility

Designed as a standalone pedestal fan unit for industrial and commercial ventilation use. No specific OEM replacement compatibility is stated for this model.

Installation Notes

Assembly requires attaching the fan head, blade, and grills to the pole and base using the included hardware — no special tools beyond basic hand tools are needed. Before servicing or adjusting the fan after installation, disconnect power at the outlet or upstream circuit. Verify that the outlet circuit is rated for the fan draw at the selected speed before energizing. Installation in regulated facilities should comply with applicable OSHA electrical safety and ventilation standards.
