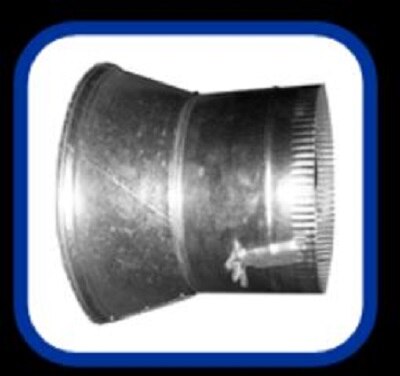

Air Flow Products MTD1412 Conical Spin-in Takeoff with Damper

Product Description

The AIR FLOW PRODUCTS MTD1412 is a metal duct conical spin-in takeoff fitting with an integrated damper, designed for use in sheet metal ductwork distribution systems. This fitting provides a secure, low-leak branch connection from a main trunk duct to a branch run, with the built-in damper allowing airflow balancing without the need for a separate balancing device. It is sized at 14 x 12 inches and is typically installed by licensed HVAC sheet metal technicians and mechanical contractors during new construction or system retrofits.

The MTD1412 is suited for residential and light commercial forced-air HVAC systems where round branch takeoffs are required from rectangular or round main trunk ducts. The conical spin-in design seats firmly into a field-cut or knockout opening in the trunk, creating a reliable connection point. The integrated damper blade allows the installing technician to balance supply airflow across multiple branch runs after system commissioning.

Key Features

• Conical spin-in collar seats securely into the trunk duct opening for a tight, low-leak fit
• Integrated damper blade enables airflow balancing without separate hardware
• Metal construction provides durability in standard forced-air duct systems
• 14 x 12 inch sizing accommodates common branch duct configurations
• Compatible with standard round branch duct connections off rectangular or round trunk lines

Compatibility

Designed as an OEM-style replacement and new-installation fitting for standard metal forced-air duct systems requiring a conical spin-in takeoff with damper at a 14 x 12 inch opening.

Installation Notes

Installation is performed by qualified HVAC technicians or sheet metal mechanics. The system blower should be de-energized and the air handler powered down completely before cutting into an existing trunk duct. The spin-in collar is inserted into the field-cut opening and rotated to lock in place per standard sheet metal practice. Seal all connections with UL 181-rated mastic or listed metal duct tape in accordance with applicable mechanical codes.

Technical Specifications

• Size: 14 x 12 inches
• Construction: Metal
• Fitting Type: Conical Spin-In Takeoff with Damper

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: MTD1412
