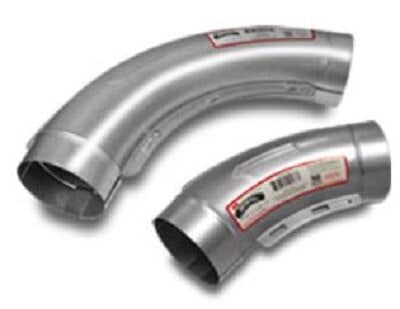

Air Flow Products LT45 Long Turn 45 Degree Dryer Elbow

Product Description

The AIR FLOW PRODUCTS LT45 is a long-turn 45-degree dryer elbow designed for use in residential and light commercial dryer exhaust systems. This fitting redirects airflow at a gradual 45-degree angle, reducing airflow restriction compared to short-turn alternatives. The long-turn radius helps maintain exhaust velocity, which is critical for proper lint transport and dryer performance. It is installed by HVAC technicians, plumbers, or experienced tradespeople during dryer vent routing and system setup.

The LT45 is suited for dryer exhaust duct installations where a 45-degree directional change is required. It is commonly used when routing duct runs around framing, through tight utility spaces, or when transitioning from a vertical to angled exhaust path. The long-turn design is preferred in installations where minimizing static pressure loss is a priority, particularly in longer duct runs.

Key Features

• Long-turn radius reduces airflow restriction at the bend
• 45-degree angle allows gradual directional change in duct routing
• Designed for dryer exhaust duct systems
• Suitable for residential and light commercial applications

Compatibility

Designed as an OEM-style fitting for standard dryer exhaust duct systems requiring a 45-degree long-turn elbow.

Installation Notes

Installation should be performed by a qualified HVAC technician or plumber familiar with dryer exhaust venting requirements. Disconnect power and, if applicable, gas supply to the dryer before beginning ductwork. Secure all joints with appropriate duct clamps or foil tape rated for dryer exhaust use, and verify the completed run meets local code requirements for maximum duct length and number of bends.

Technical Specifications

• Elbow Angle: 45 degrees
• Turn Type: Long Turn
• Application: Dryer Exhaust Duct

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: LT45
