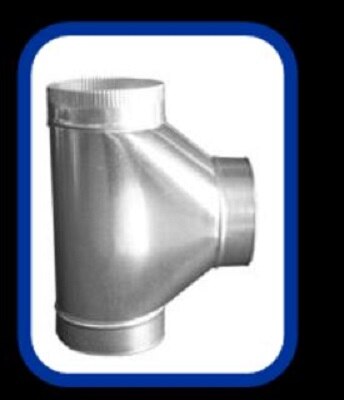

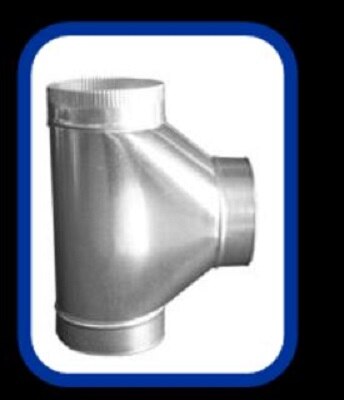

Air Flow Products 86F14 Full Flow Tee 14x14x14

Product Description

The AIR FLOW PRODUCTS 86F14 is a full flow tee fitting designed for duct and air distribution systems. This tee maintains consistent airflow through all three openings, reducing turbulence and pressure drop compared to standard tee configurations. Measuring 14 x 14 x 14 inches across all three ports, it is sized for larger trunk or branch duct connections. HVAC technicians and sheet metal contractors install this fitting during system layout and duct fabrication on commercial and residential projects.

The 86F14 is suited for applications where balanced air distribution across branch runs is required. Its symmetrical 14-inch opening configuration makes it appropriate for main trunk intersections or large branch takeoffs in forced-air systems. It is typically installed during new construction duct fabrication or during major system retrofits where duct resizing is needed.

Key Features

• Full flow design maintains airflow volume through all three ports
• Symmetrical 14 x 14 x 14 inch opening dimensions for consistent sizing across all connections
• Suitable for trunk-to-branch transitions in forced-air duct systems
• Designed for reduced turbulence and minimized pressure drop at the tee junction

Compatibility

Designed as an OEM-style duct fitting for use in forced-air HVAC duct systems requiring a 14-inch full flow tee connection at trunk or branch junctions.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal contractor. Power down the air handling unit and any associated controls before beginning duct work. Secure all connections with appropriate fasteners and seal joints with listed duct sealant or metal tape per local mechanical code requirements. Ensure the fitting is properly supported to prevent stress on adjacent ductwork.

Technical Specifications

• Configuration: Full Flow Tee
• Opening Dimensions: 14 x 14 x 14 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 86F14
