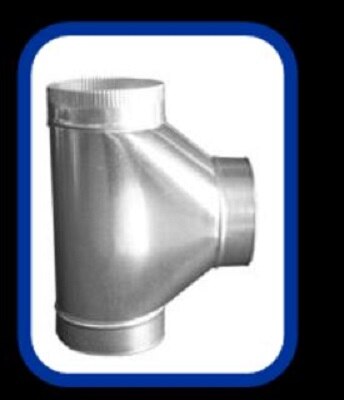

Air Flow Products 86F10 Full Flow Tee 10x10x10 Inch

Product Description

The AIR FLOW PRODUCTS 86F10 is a full flow tee fitting designed for duct and air distribution systems. Full flow tee fittings maintain consistent airflow through all three openings, reducing turbulence and pressure drop compared to standard tee configurations. This fitting measures 10 x 10 x 10 inches across all three ports, making it a symmetrical tee suitable for branch takeoff applications. HVAC technicians and sheet metal installers typically specify full flow tees in trunk-and-branch duct systems where balanced airflow distribution is critical to system performance.

The 86F10 is used in residential and light commercial HVAC duct installations where a 10-inch duct run splits into two equal branches. Its symmetrical 10 x 10 x 10 inch configuration is well-suited for supply or return air trunk systems requiring a balanced, equal-leg branch connection. This fitting is installed inline during ductwork fabrication or replacement and integrates with standard round or rectangular duct depending on system design.

Key Features

• Full flow design minimizes pressure drop across all three ports
• Symmetrical 10 x 10 x 10 inch port configuration for equal-leg branch applications
• Suitable for supply and return air duct systems
• Designed for trunk-and-branch duct layouts requiring balanced airflow distribution

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 10-inch duct systems in residential and light commercial HVAC applications.

Installation Notes

Installation is typically performed by licensed HVAC technicians or qualified sheet metal workers. The air handling system should be fully powered down before modifying ductwork. Secure all connections with approved fasteners and seal joints with listed duct sealant or UL 181-rated tape per local mechanical code requirements. Inspect the completed assembly for air leaks before returning the system to operation.

Technical Specifications

• Port Size: 10 x 10 x 10 inches
• Configuration: Symmetrical Full Flow Tee

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 86F10
