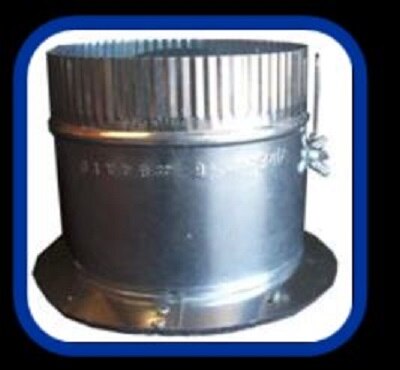

Air Flow Products 84ATD04 Stick-on Takeoff Damper 4 in

Product Description

The AIR FLOW PRODUCTS 84ATD04 is an airtight stick-on takeoff fitting with an integrated damper, designed for use with flat duct systems. It provides a sealed branch connection point where supply air is diverted from a flat duct run to a downstream register or branch line. The airtight construction minimizes air leakage at the takeoff point, helping maintain system pressure and delivery efficiency. This fitting is typically installed by HVAC technicians during new duct installations or duct system retrofits where flat duct configurations are used.

The 84ATD04 is suited for residential and light commercial HVAC applications using flat duct layouts. The stick-on design allows the fitting to be adhered directly to the flat duct surface, eliminating the need for cutting a separate collar and simplifying field installation. The built-in damper allows the technician to regulate or shut off airflow to individual zones or runs after installation. This makes the fitting useful in zoned systems or in situations where balancing airflow across multiple branches is required.

Key Features

• Airtight construction reduces air leakage at branch takeoff points
• Stick-on installation adheres directly to flat duct surface for faster field work
• Integrated damper allows airflow regulation or shutoff after installation
• 4-inch outlet size suits common residential branch duct runs
• Designed specifically for flat duct system configurations

Compatibility

Designed as an OEM-style replacement and new-installation fitting for flat duct HVAC systems requiring an airtight stick-on takeoff with damper at a 4-inch branch outlet.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Power down the air handler and verify the system is depressurized before working on duct connections. Ensure the flat duct surface is clean and free of debris before adhering the fitting to achieve a proper airtight seal. Follow local mechanical codes and ACCA Manual D guidelines for duct branch sizing and airflow balancing.

Technical Specifications

• Outlet Size: 4 inches
• Duct Type: Flat Duct
• Damper: Integrated
• Seal Type: Airtight
• Installation Method: Stick-On

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 84ATD04
