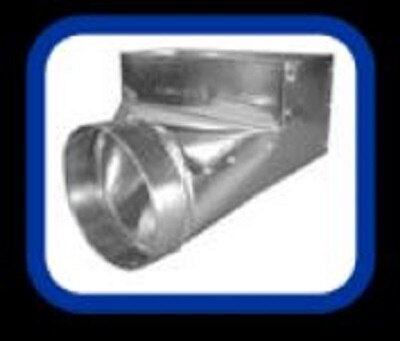

Air Flow Products 7361007 Register Boot 90 Degree 6x10x7

Product Description

The Air Flow Products 7361007 is a 90-degree register boot designed to transition ductwork to a floor, wall, or ceiling register opening. This sheet metal fitting connects the supply duct run to the register face, directing conditioned air into the living space. With an opening configuration of 6 inches by 10 inches and a collar depth of 7 inches, it fits standard residential duct layouts and mates with common 6x10 register grilles. HVAC installers and sheet metal contractors use this boot during new construction and duct replacement work in residential and light commercial applications.

This 90-degree boot is suited for residential forced-air systems where the duct transitions from a horizontal run to a floor or wall register. The 6x10x7 sizing accommodates standard supply branch takeoffs and pairs with matching register grilles of the same face dimension. It is a common fitting in new construction framing, remodel duct work, and supply-side branch replacement projects where a right-angle transition is required at the point of delivery.

Key Features

• 90-degree angle configuration for transitioning duct runs to register openings
• 6-inch by 10-inch register face opening mates with standard 6x10 grilles and registers
• 7-inch collar depth provides adequate clearance for typical floor and wall framing installations
• Designed for supply-side branch duct termination in forced-air systems

Compatibility

Designed as an OEM-style sheet metal fitting for use with standard 6x10 floor, wall, or ceiling registers in residential and light commercial forced-air duct systems.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Power down the air handling unit before connecting or modifying any duct section. Secure the boot to the duct run using sheet metal screws and seal all joints with UL-listed foil tape or mastic sealant per local mechanical code requirements. Ensure the register face dimension of the boot matches the grille being installed to maintain proper airflow and aesthetics.

Technical Specifications

• Configuration: 90 Degree
• Register Face Opening: 6 x 10 inches
• Collar Depth: 7 inches

Standard Information

• Brand: Air Flow Products
• Manufacturer Part Number: 7361007
