Air Flow Products 7361005 Register Boot 90 Degree 6x10x5

Product Description

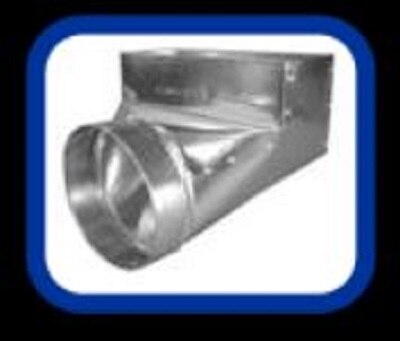

The AIR FLOW PRODUCTS 7361005 is a 90-degree register boot designed to transition ductwork to a floor, wall, or ceiling register opening. This sheet metal fitting connects supply duct runs to register grilles, redirecting airflow at a right angle to suit the layout of the duct system. The 6x10x5 sizing denotes the duct collar dimension and the register face opening, making it a standard fit for common residential and light commercial HVAC applications. HVAC installers and sheet metal mechanics use this fitting during new construction and retrofit projects to terminate supply branches at the register location.

This register boot is suited for residential forced-air systems where supply ducts run through floor joists, wall cavities, or ceiling plenum spaces. The 90-degree configuration allows the duct to terminate perpendicular to the register face, which is the most common install geometry for floor and sidewall registers. It fits standard supply trunk and branch duct layouts and is compatible with register grilles sized to a 6x10 face opening.

Key Features

• 90-degree elbow configuration redirects airflow at a right angle from duct run to register face
• 6x10x5 inch sizing matches common residential register and duct collar dimensions
• Designed for floor, sidewall, or ceiling register termination depending on install orientation
• Standard sheet metal construction for use in forced-air supply duct systems

Compatibility

Designed as an OEM-style replacement or new-construction fitting for residential and light commercial forced-air supply duct systems using standard 6x10 register grilles and 5-inch duct collar connections.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal mechanic. Shut down the air handler or furnace and ensure the system is de-energized before beginning ductwork modifications. Secure the boot to the duct collar using sheet metal screws and seal all joints with UL 181-rated duct mastic or foil tape to maintain system efficiency. Follow local mechanical codes and ACCA Manual D guidelines for proper duct sizing and fitting placement.

Technical Specifications

• Configuration: 90 Degree
• Register Face Opening: 6x10 inches
• Duct Collar Size: 5 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 7361005
