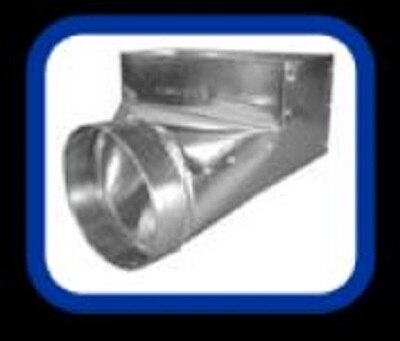

Air Flow Products 7341206 90 Degree Register Boot 4x12x6

Product Description

The AIR FLOW PRODUCTS 7341206 is a 90-degree register boot designed to transition ductwork from a horizontal run to a vertical or wall-mounted register opening. This sheet metal fitting connects the supply duct to the register face, directing conditioned air into the living space at a right angle. It fits a 4-inch round or rectangular duct inlet and terminates at a 12 by 6 inch register opening. HVAC installers use this boot during new construction and retrofit projects to complete the final duct-to-register connection in residential and light commercial forced-air systems.

This register boot is suited for residential forced-air heating and cooling systems where ductwork must transition at a 90-degree angle to supply a floor, wall, or ceiling register. The 4 by 12 by 6 inch configuration is a common sizing used in standard trunk-and-branch duct layouts. It is typically installed at the end of a branch duct run where the register face must sit flush with the floor, wall, or ceiling surface.

Key Features

• 90-degree throat angle allows duct-to-register transition in tight or angled spaces
• 4-inch duct collar inlet connects to standard round branch duct
• 12 by 6 inch register face opening accepts standard 12 by 6 inch registers and grilles
• Compact boot design suited for new construction and retrofit duct installations

Compatibility

Designed as an OEM-style replacement and new-construction fitting compatible with standard 12 by 6 inch floor, wall, or ceiling registers and grilles in residential forced-air duct systems.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified duct installer in accordance with local mechanical codes and SMACNA ductwork standards. Power down the air handling unit and verify the system is off before cutting into existing ductwork or securing the boot to a branch duct. Secure the boot collar to the duct with sheet metal screws and seal all joints with UL-listed duct tape or mastic sealant to prevent air leakage. Ensure the register face opening is flush and square with the finished surface before fastening the register or grille.

Technical Specifications

• Configuration: 90 Degree
• Duct Inlet Size: 4 inches
• Register Face Opening: 12 by 6 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 7341206
