Air Flow Products 7341007 Register Boot 90 Degree 4x10x7

Product Description

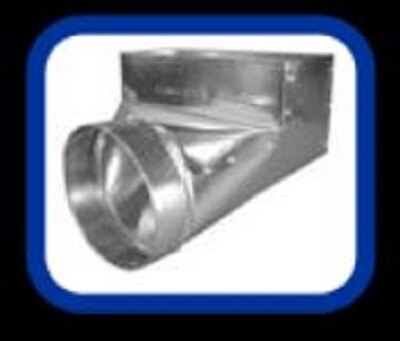

The AIR FLOW PRODUCTS 7341007 is a 90-degree register boot designed to connect supply air ductwork to a floor, wall, or ceiling register opening. This sheet metal boot transitions airflow from the duct run and turns it 90 degrees to direct conditioned air into the living space. The outlet dimensions measure 4 inches by 10 inches, with a 7-inch collar depth, making it a standard size for residential forced-air HVAC systems. HVAC installers and sheet metal contractors use this fitting during new construction and retrofit applications where a right-angle transition is required between the duct and the register face.

The 7341007 register boot is suited for residential and light commercial forced-air heating and cooling systems. It is typically installed at the termination point of a supply duct run where the duct must change direction before meeting the register or grille. The 4x10x7 geometry fits standard 4-inch round or rectangular duct collars and accepts a 4-inch by 10-inch register face. This configuration is common in floor-mounted supply register applications in wood-framed construction.

Key Features

• 90-degree elbow geometry directs airflow from horizontal duct run to vertical register opening
• 4 inches by 10 inches outlet opening accommodates standard residential register sizes
• 7-inch collar depth provides adequate connection length for secure duct attachment
• Designed for supply-air termination in forced-air heating and cooling systems
• Standard sizing compatible with common residential new construction and replacement applications

Compatibility

Designed as an OEM-style replacement and new-construction fitting for residential forced-air HVAC duct systems requiring a 90-degree register boot with a 4-inch by 10-inch outlet and a 7-inch collar.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal contractor in accordance with local mechanical codes and SMACNA duct construction standards. Shut down the air handler or furnace and ensure the system is de-energized before connecting or modifying ductwork. Secure the boot collar to the supply duct with sheet metal screws and seal all joints with listed duct mastic or UL 181-rated foil tape to prevent air leakage. Verify the register face opening in the floor or wall is framed to match the 4-inch by 10-inch boot outlet before fastening the boot in place.

Technical Specifications

• Outlet Dimensions: 4 inches x 10 inches
• Collar Depth: 7 inches
• Angle: 90 degrees

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 7341007
