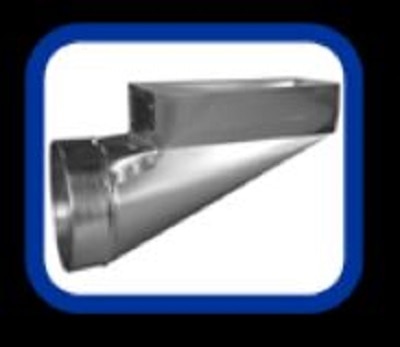

Air Flow Products 7261408 Center End Register Boot 90 Degree

Product Description

The AIR FLOW PRODUCTS 7261408 is a center end register boot designed to connect rectangular ductwork to a floor, wall, or ceiling register opening. This 90-degree boot transitions from a round or rectangular duct collar to a 6 by 14 by 8 inch register face, directing conditioned air through the finished register. It is used in residential and light commercial forced-air HVAC systems during new construction or duct modification work. HVAC installers and sheet metal tradespeople are the typical end users for this fitting.

This center end boot is suited for applications where the supply duct runs perpendicular to the register face and terminates at the center of the boot end. The 90-degree geometry makes it appropriate for horizontal duct runs feeding floor or ceiling registers. The 6 by 14 by 8 inch sizing corresponds to the duct collar and register opening dimensions, making it a standard fitting for residential trunk-and-branch and extended-plenum duct systems.

Key Features

• 90-degree center end configuration for perpendicular duct-to-register connections
• Register face dimensions of 6 by 14 by 8 inches for standard residential register sizing
• Designed for supply-air termination at floor, wall, or ceiling register openings
• Compatible with trunk-and-branch and extended-plenum forced-air duct layouts

Compatibility

Designed as an OEM-style replacement or new-construction fitting for residential and light commercial forced-air supply duct systems requiring a 90-degree center end boot at a 6 by 14 by 8 inch register opening.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal mechanics. Power down the air handling unit and close the system before cutting into existing ductwork. Seal all joints with listed duct sealant or UL 181-rated tape per local mechanical code requirements. Do not compress or restrict the boot opening, as this reduces airflow and system efficiency.

Technical Specifications

• Boot Type: Center End Boot
• Angle: 90 Degree
• Register Opening Size: 6 x 14 x 8 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 7261408
