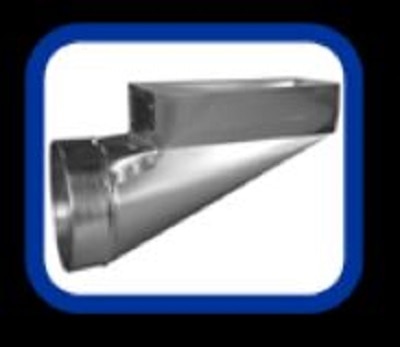

Air Flow Products 7261207 Center End Register Boot 6x12x7

Product Description

The AIR FLOW PRODUCTS 7261207 is a center end register boot designed for residential and light commercial duct systems. This 90-degree boot transitions from round or rectangular duct runs to a flat register or grille opening, directing conditioned air into the occupied space. The boot measures 6 inches by 12 inches by 7 inches and is built to the common style 72 center end configuration, which positions the duct collar at the center of the end panel. HVAC installers and sheet metal mechanics fit this boot during new construction and renovation work wherever a 90-degree duct takeoff is needed at a wall, floor, or ceiling termination point.

This boot is suited for forced-air heating and cooling applications in residential construction and light commercial projects. It installs at the terminal end of a duct branch, mating with a standard 6-inch round or rectangular duct collar and accepting a matching floor, wall, or ceiling register at the face opening. The center end design allows the duct connection to land at the midpoint of the end panel, which is a common layout requirement in platform framing and subfloor duct installations.

Key Features

• 90-degree configuration routes duct flow from horizontal run to vertical or horizontal register face
• Center end collar placement accommodates common platform-frame and subfloor duct layouts
• Face opening sized at 6 inches by 12 inches to accept standard 6x12 registers and grilles
• Overall boot depth of 7 inches fits typical joist bay and wall cavity clearances
• Style 72 center end design matches widely used residential duct rough-in patterns

Compatibility

Designed as an OEM-style replacement and new-construction fitting for residential and light commercial forced-air duct systems requiring a 90-degree center end boot with a 6x12x7-inch profile.

Installation Notes

Register boots are installed by licensed HVAC technicians or sheet metal mechanics and should comply with local mechanical codes and SMACNA duct construction standards. Shut down the air handler and isolate the duct system before cutting into existing ductwork or securing the boot in place. Seal all joints with listed duct mastic or UL 181-rated foil tape to maintain system efficiency and meet energy code requirements. Secure the boot to framing members before attaching the register face to prevent movement and air leakage.

Technical Specifications

• Style: 72 Center End Boot
• Angle: 90 Degree
• Face Opening: 6x12 inches
• Boot Depth: 7 inches
• Overall Dimensions: 6x12x7 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 7261207
