Air Flow Products 7261206 Center End Register Boot 6x12x6

Product Description

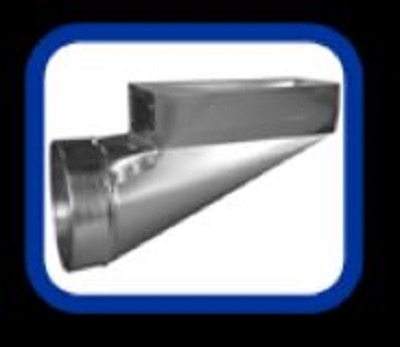

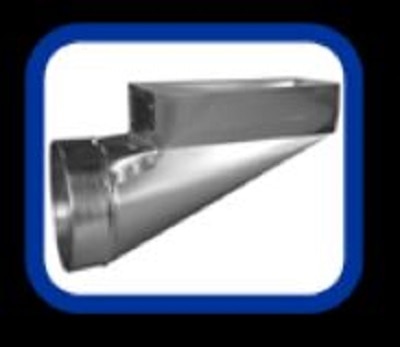

The AIR FLOW PRODUCTS 7261206 is a center end register boot designed to transition ductwork to a floor, wall, or ceiling register opening. This 90-degree boot connects a round or rectangular supply duct to a centered register face, directing conditioned air into the living space. The boot measures 6 inches by 12 inches by 6 inches, making it suitable for standard residential supply trunk-and-branch systems. HVAC installers and sheet metal contractors use this fitting during new construction and retrofit duct installations where a clean center-end termination is required.

This register boot is used in residential forced-air heating and cooling systems where a 90-degree transition is needed from the supply branch duct to the register grille. The center end configuration positions the duct connection at the end of the boot, which suits floor and sidewall register placements commonly found in residential construction. The 6x12x6 inch profile accommodates standard register and grille sizes used in typical residential HVAC duct layouts.

Key Features

• 90-degree geometry transitions duct runs cleanly to register openings
• Center end design routes the duct connection through the end of the boot
• 6x12x6 inch profile fits standard residential register and grille sizes
• Suitable for floor, sidewall, and ceiling register installations
• Designed for use in forced-air supply duct systems

Compatibility

Designed as an OEM-style replacement and new-installation fitting for residential forced-air HVAC duct systems requiring a 90-degree center end register boot in a 6x12x6 inch configuration.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Power down the air handling unit and confirm the system is off before working on supply ductwork. Secure the boot to the branch duct using sheet metal screws and seal all joints with UL-listed foil tape or mastic sealant to prevent air leakage. Follow local mechanical codes and ACCA Manual D guidelines for duct fitting and airflow requirements.

Technical Specifications

• Configuration: Center End Boot
• Angle: 90 Degree
• Dimensions: 6x12x6 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 7261206
