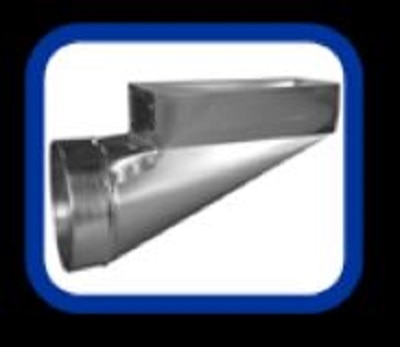

Air Flow Products 7261006 Center End Register Boot 90 Degree

Product Description

The AIR FLOW PRODUCTS 7261006 is a center end register boot designed for ducted HVAC air distribution systems. This 90-degree boot connects supply ductwork to a floor, wall, or ceiling register opening, directing conditioned air into the living or working space. The unit measures 6 inches by 10 inches by 6 inches, making it suited for standard residential and light commercial duct runs. HVAC technicians and sheet metal installers work with this boot during new construction, system retrofits, and register replacements.

This register boot is used in forced-air heating and cooling systems where a 90-degree transition is needed between the duct run and the register face. The center end configuration positions the duct collar at the center of the boot end, which is a common layout in floor and ceiling applications where the supply duct approaches from directly below or above the register opening. It fits into standard rough-in framing and joist-bay installations typical of residential construction.

Key Features

• 90-degree boot configuration routes duct airflow perpendicular to the register face
• Center end collar placement suits floor, ceiling, and select wall register layouts
• 6 x 10 x 6 inch nominal sizing fits standard supply duct and register dimensions
• Designed for use with standard flat bar or snap-in registers and grilles

Compatibility

Designed as an OEM-style replacement or new-construction component for residential and light commercial forced-air duct systems using 6-inch round or 6 x 10 inch rectangular supply connections.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal installer. Shut down the air handling unit and confirm the system is de-energized before cutting into existing ductwork or framing. Secure the boot to framing members and seal all duct connections with UL-listed foil tape or mastic per local mechanical code requirements. Verify register opening dimensions match the boot face before fastening the grille or register.

Technical Specifications

• Boot Type: Center End Boot
• Angle: 90 Degree
• Nominal Size: 6 x 10 x 6 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 7261006
