Air Flow Products 7241408 Center End Register Boot 4x14x8

Product Description

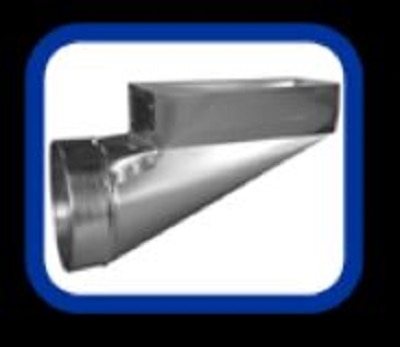

The AIR FLOW PRODUCTS 7241408 is a center end register boot designed to transition ductwork to a floor, wall, or ceiling register opening. This 90-degree boot connects round or rectangular duct on one end and delivers conditioned air through a centered register opening on the other. It is sized at 4x14x8 inches, making it a standard fit for residential and light commercial forced-air systems. HVAC technicians and sheet metal installers use this type of boot during new construction rough-in or duct replacement work to terminate supply runs cleanly at the register face.

This center end boot is suited for supply air distribution in residential forced-air heating and cooling systems. The 90-degree angle allows the duct run to terminate perpendicular to the floor or wall surface, which is the most common orientation in platform-framed construction. The 4x14x8 inch sizing accommodates standard register and grille dimensions widely used in residential trunk-and-branch duct layouts. It is typically installed at the end of a supply branch run where the register is centered over the boot opening.

Key Features

• 90-degree center end configuration for perpendicular duct-to-register transitions
• 4x14x8 inch dimensions sized for standard residential register openings
• Center end design positions the duct connection at the end of the boot for branch run termination
• Compatible with standard forced-air supply duct systems in residential construction
• Designed for floor, wall, or ceiling register installations depending on orientation

Compatibility

Designed as an OEM-style replacement or new-construction component for standard residential and light commercial forced-air duct systems accepting a 4x14x8 inch register boot.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal installer. Shut down the air handling system before connecting or modifying any ductwork. Secure the boot to the duct with sheet metal screws and seal all joints with approved duct mastic or UL-listed foil tape per local mechanical codes. Ensure the register opening aligns flush with the finished floor, wall, or ceiling surface before fastening.

Technical Specifications

• Boot Type: Center End Boot
• Angle: 90 Degree
• Dimensions: 4x14x8 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 7241408
