Air Flow Products 59061408 Insulated Boot Flange 6x14 8 in

Product Description

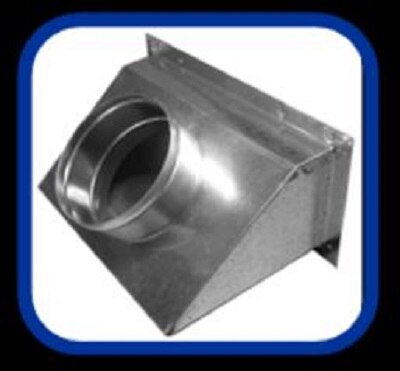

The AIR FLOW PRODUCTS 59061408 is a short top insulated boot with flange, designed for use in residential and light commercial HVAC duct systems. This boot connects flex duct or rigid duct runs to floor, wall, or ceiling register openings. The 59F profile features a 6x14 inch face opening and an 8 inch collar, making it suited for branch duct takeoffs where space above the boot is limited. HVAC technicians and sheet metal installers use this fitting to terminate supply air runs at register locations while maintaining insulation integrity at the transition point.

This boot is intended for supply air branch runs in residential forced-air systems and light commercial ducted HVAC applications. The insulated construction helps reduce heat gain or loss at the boot, which is especially important when the fitting is installed in unconditioned spaces such as attics, crawlspaces, or floor cavities. The short top design is well suited for installations where vertical clearance above the fitting is restricted.

Key Features

• Short top profile accommodates low-clearance installation locations
• Insulated body reduces thermal loss at the duct termination point
• Integrated flange provides a secure register or grille mounting surface
• 6x14 inch face opening fits standard register sizes in that dimension
• 8 inch collar connects directly to 8 inch round flex or rigid duct

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial forced-air HVAC duct systems using 8 inch round branch ducts terminating at 6x14 inch register openings.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal installer. Shut down the air handling unit and verify the system is de-energized before making duct connections. Secure the collar connection with approved duct tape, mastic sealant, or mechanical fasteners per local mechanical code requirements. Ensure the flange seats flush against the finished surface before securing the register or grille.

Technical Specifications

• Face Opening: 6x14 inches
• Collar Diameter: 8 inches
• Boot Style: Short Top with Flange
• Profile Series: 59F
• Insulation: Insulated

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 59061408
