Air Flow Products 59061206 Insulated Boot Flange 6x12 6in

Product Description

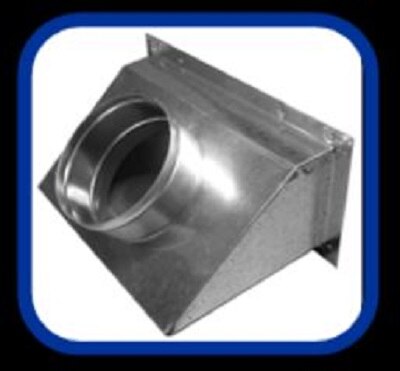

The AIR FLOW PRODUCTS 59061206 is a short top insulated boot with flange, designed to connect supply air ductwork to floor or ceiling registers in residential and light commercial HVAC systems. The boot features a 6x12 inch rectangular opening and a 6 inch round collar, providing a transition from round flex or rigid duct to a standard register face. Insulation on the boot body helps limit heat loss and condensation at the supply outlet, keeping delivered air temperature consistent from the plenum to the register. HVAC installers and sheet metal mechanics use this fitting during new construction and retrofit applications.

The 59061206 short top insulated boot is suited for floor, sidewall, and low-sidewall register installations where ceiling height or joist depth limits clearance for a standard-depth boot. The 6 inch collar accepts common 6 inch round duct connections, and the 6x12 inch face aligns with standard 6x12 register and grille sizes. The flanged top edge allows for secure fastening to subfloor or framing, maintaining alignment during and after installation.

Key Features

• Short-depth profile for tight joist bays or limited clearance applications
• Insulated body reduces heat loss and limits condensation at the supply outlet
• 6x12 inch rectangular face fits standard 6x12 registers and grilles
• 6 inch round collar for direct connection to 6 inch round flex or rigid duct
• Flanged top edge allows fastening to subfloor or framing for secure register alignment

Compatibility

Designed as an OEM-style replacement and new-construction fitting compatible with standard 6x12 inch floor or sidewall registers and 6 inch round supply duct systems in residential and light commercial HVAC applications.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal mechanic. Shut down and lock out the air handling unit before cutting into existing ductwork or modifying supply runs. Secure the collar connection with sheet metal screws and seal all joints with UL-listed duct sealant or approved foil tape per local mechanical code requirements. Do not compress or restrict the insulation at connection points, as this reduces thermal performance.

Technical Specifications

• Face Size: 6x12 inches
• Collar Diameter: 6 inches
• Boot Style: Short Top with Flange
• Insulation: Yes

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 59061206
