Air Flow Products 59061006 Insulated Boot Flange 6x10 6 in Collar

Product Description

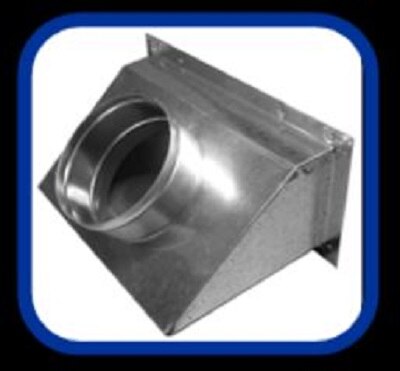

The AIR FLOW PRODUCTS 59061006 is a short top insulated boot with flange, designed for use in residential and light commercial HVAC duct systems. This 59F-style boot connects ductwork to floor, wall, or ceiling registers and transitions airflow from the main trunk or branch run to the supply outlet. The unit measures 6x10 inches at the duct end and features a 6-inch round collar for connection to flexible or rigid round duct. Insulation on the boot helps reduce heat gain or loss and limits condensation at the supply outlet. HVAC installers and sheet metal mechanics are the primary trade who work with this component.

The 59061006 is suited for new construction and retrofit applications where a short-depth boot is required due to limited floor joist or wall cavity depth. The 59F profile with integrated flange simplifies register attachment and provides a finished appearance at the face of the register opening. It is commonly used in forced-air heating and cooling systems with standard 6-inch round branch duct runs feeding 6x10-inch register openings.

Key Features

• Short top profile fits shallow floor joist and wall cavity installations
• Integrated flange simplifies register seating and fastening
• 6x10 inch duct opening accommodates standard register sizes
• 6-inch round collar connects to flexible or rigid round branch duct
• Insulated construction reduces heat transfer and condensation at the boot

Compatibility

Designed as an OEM-style replacement or new-installation component for forced-air HVAC systems using 6-inch round branch ducts and 6x10-inch supply registers.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal mechanics. Power down the air handler or furnace and close the system dampers before cutting into existing ductwork. Secure the round collar connection with sheet metal screws and seal all joints with UL 181-rated duct sealant or mastic to meet energy code requirements. Ensure the flange seats flush against the subfloor or wall surface before fastening the register grille.

Technical Specifications

• Style: 59F Short Top with Flange
• Duct Opening: 6x10 inches
• Collar Diameter: 6 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 59061006
