Air Flow Products 5361005 Ceiling Diffuser Boot 6x10 5in Collar

Product Description

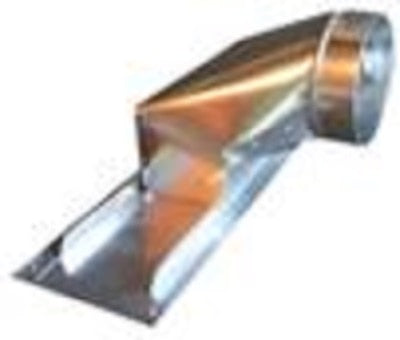

The AIR FLOW PRODUCTS 5361005 is a ceiling diffuser boot with rail designed to connect ductwork to a ceiling diffuser in residential and light commercial HVAC systems. The boot features a 6x10 inch face opening and a 5 inch round collar for duct connection, providing a clean transition from round duct to a rectangular ceiling diffuser opening. This component is typically installed by HVAC technicians during new construction or system retrofit projects where a ceiling-mounted diffuser is required for conditioned air distribution.

This ceiling diffuser boot is suited for use in standard forced-air systems where a ceiling diffuser must be fed from a round branch duct. The integral rail simplifies diffuser mounting and alignment, making it a practical choice for drop-ceiling and drywall ceiling installations in both residential and light commercial applications.

Key Features

• 6x10 inch rectangular face opening sized for standard ceiling diffuser mounting
• 5 inch round collar for direct connection to branch ductwork
• Integrated rail for secure diffuser support and alignment
• Designed for ceiling-mount installation in forced-air HVAC systems

Compatibility

Designed as an OEM-style replacement or new-installation component for ceiling diffuser assemblies requiring a 6x10 inch face boot with a 5 inch collar connection.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Shut down the air handling system and lock out power before beginning any duct or boot work. Secure the collar connection to the branch duct using approved sheet metal screws and foil-backed tape or mastic sealant per local mechanical code requirements. Ensure the rail is properly seated and the diffuser is fully supported before restoring system operation.

Technical Specifications

• Face Size: 6x10 inches
• Collar Diameter: 5 inches
• Mount Type: Ceiling
• Rail Included: Yes

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 5361005
