Air Flow Products 5340805 Ceiling Diffuser Boot 4x8 5in Collar

Product Description

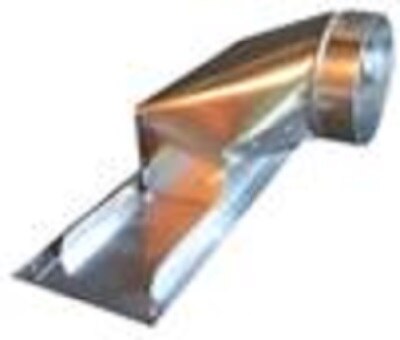

The AIR FLOW PRODUCTS 5340805 is a ceiling diffuser boot with rail designed for residential and light commercial HVAC duct systems. This boot connects the ductwork to a ceiling diffuser, directing conditioned air into the occupied space. The unit features a 4x8 inch rectangular opening and a 5 inch round collar for duct connection. HVAC installers and sheet metal contractors use this component during new construction and renovation work to terminate supply duct runs at the ceiling plane.

This ceiling diffuser boot is suited for supply air applications in residential homes and light commercial spaces. It is installed at the end of a branch duct run where a ceiling diffuser or register is required. The 4x8 inch face dimension pairs with standard 4x8 ceiling diffusers, and the 5 inch collar accepts round flexible duct or rigid round ductwork of the same diameter.

Key Features

• 4x8 inch rectangular face opening for standard ceiling diffuser mounting
• 5 inch round collar for connection to round flexible or rigid duct
• Integrated rail design supports secure diffuser or register attachment
• Designed for ceiling supply air termination in duct distribution systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial ceiling diffuser applications requiring a 4x8 inch face and 5 inch round collar connection.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal contractor. Shut down and lock out the air handling system before cutting into or modifying any ductwork. Secure the boot to the ceiling joist or framing using appropriate fasteners, and seal all duct connections with listed duct sealant or approved tape per local mechanical codes. Do not operate the system with diffusers or registers removed.

Technical Specifications

• Face Opening: 4x8 inches
• Collar Diameter: 5 inches
• Configuration: Ceiling Diffuser Boot with Rail

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 5340805
