Air Flow Products 209026 90 Degree Elbow 26 Gauge 20 Inches

Product Description

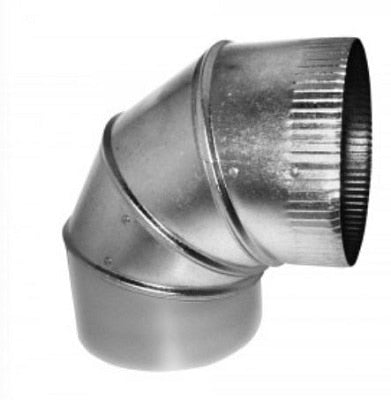

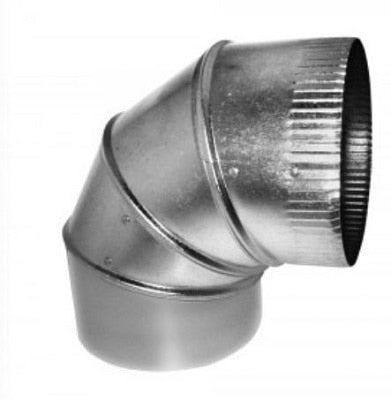

The AIR FLOW PRODUCTS 209026 is a 90-degree sheet metal elbow fabricated in 26-gauge steel at a 20-inch diameter. It is a standard duct fitting used to redirect airflow at a right angle within forced-air HVAC duct systems. Sheet metal contractors and HVAC installers use this fitting during new construction and duct renovation work where rectangular or round duct runs require a turn. The 26-gauge construction offers a balance of rigidity and workability appropriate for commercial and residential trunk-and-branch systems.

This elbow is suited for installation in supply and return air duct systems where a 90-degree direction change is required. At 20 inches, it fits larger trunk lines commonly found in light commercial and high-capacity residential applications. HVAC sheet metal mechanics install this fitting as part of a fabricated or prefabricated duct assembly, connecting it with sheet metal screws and sealed with mastic or UL 181-listed tape per local mechanical code requirements.

Key Features

• 90-degree bend for right-angle duct direction changes
• 26-gauge steel construction for rigidity in larger duct diameters
• 20-inch size fits large trunk lines in commercial and high-capacity residential systems
• Compatible with standard sheet metal duct assembly methods including screws and mastic sealing

Compatibility

Designed as an OEM-style duct fitting for use in forced-air HVAC duct systems requiring a 20-inch 90-degree elbow transition.

Installation Notes

Installation should be performed by a licensed sheet metal contractor or HVAC technician in accordance with local mechanical codes and SMACNA duct construction standards. Shut down the air handling unit before fitting installation or modification of any duct section. Secure the elbow with sheet metal screws and seal all joints with mastic or UL 181-rated tape to maintain system integrity and prevent air leakage. Do not compress or distort the fitting during installation, as deformation will reduce airflow performance.

Technical Specifications

• Angle: 90 degrees
• Gauge: 26 GA
• Diameter: 20 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 209026
