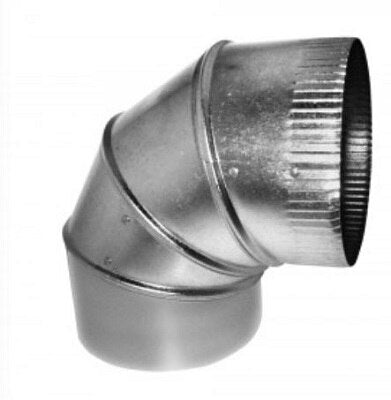

Air Flow Products 149026 Sheet Metal Elbow 26 Gauge 14 Inches

Product Description

The AIR FLOW PRODUCTS 149026 is a 26-gauge sheet metal elbow sized at 14 inches, used to change airflow direction within ductwork systems. This fitting is a standard component in forced-air HVAC installations, allowing installers to route supply or return air around structural obstacles and through tight spaces. The 26-gauge construction provides a balance of rigidity and workability suited to commercial and residential sheet metal duct runs. HVAC technicians and sheet metal workers install this elbow as part of new duct fabrication or duct repair work.

This elbow fits into standard rectangular or round ductwork configurations depending on the specific throat and heel geometry of the installed system. It is appropriate for residential forced-air furnace and air handler installations as well as light commercial duct systems where 26-gauge galvanized sheet metal fittings are specified. The 14-inch dimension makes it suitable for medium to larger trunk line transitions and branch takeoffs common in commercial and residential construction.

Key Features

• 26-gauge sheet metal construction for durability and workability in field installations
• 14-inch sizing fits medium to large duct runs in residential and light commercial systems
• Standard elbow geometry for directional airflow routing in forced-air HVAC ductwork
• Compatible with standard sheet metal duct fabrication and installation practices

Compatibility

Designed as an OEM-style sheet metal elbow fitting for use in standard forced-air HVAC ductwork systems requiring 26-gauge fittings at the 14-inch size.

Installation Notes

Installation is typically performed by a licensed HVAC technician or journeyman sheet metal worker. Power down and lock out the air handling unit before working on connected ductwork. Secure the elbow using sheet metal screws and seal all joints with UL-listed duct sealant or foil tape per local mechanical code requirements. Follow applicable provisions of the International Mechanical Code when routing and securing duct fittings.

Technical Specifications

• Gauge: 26 GA
• Size: 14 inches

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 149026
