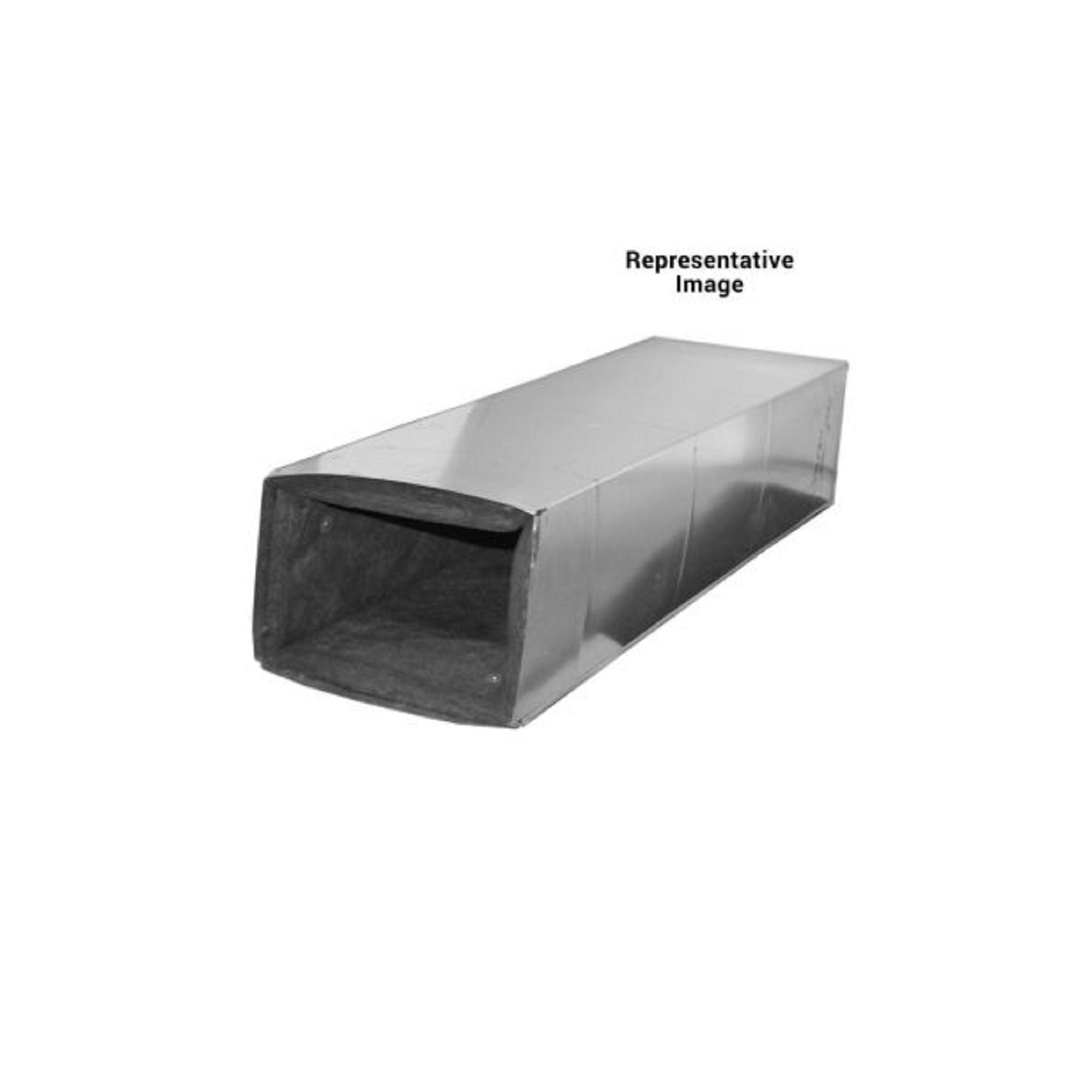

Air Duct Products 5523.140194360-26 Plenum 26 Gauge 14 inches x 19-1/2 inches x 36 inches

Product Description

The Air Duct Products Plenum, model 5523.140194360-26, is a precision-crafted ductwork solution designed for efficient air distribution. This plenum is constructed with high-quality 26 gauge galvanized steel and features a robust 1-inch fiberglass liner for optimal insulation.

• Galvanized steel ensures durability and corrosion resistance.
• Integrated with a 1-inch fiberglass liner, achieving an R-value of R4.2.
• Designed for easy installation with flanged edges.

Product Highlights

Constructed to accommodate various HVAC systems, this plenum is essential for creating seamless transitions between air handling units and ductwork. Ideal for both new installations and replacements, its insulated design enhances overall energy efficiency.

Product Information

Standard Information

• Brand: Air Duct Products
• Size: 14 inches x 19-1/2 inches x 36 inches

Technical Specifications

• Gauge: 26 GA
• Width: 19.5 inches
• Height: 36 inches
• Length: 140 inches
• Weight: 1.7305 pounds
• Flanged: Yes
• Prop 65: Yes
• R-Value: R4.2
• Insulated: Yes
• Material: Galvanized Steel
