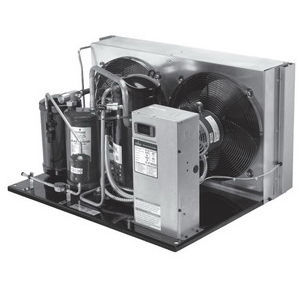

Copeland FFAP-017Z-CFV-072 Air Cooled Condensing Unit 1 3/4 HP 208/230 V 60 Hz

Product Description

The Copeland FFAP-017Z-CFV-072 is an air cooled condensing unit designed for high temperature applications. This unit features a power rating of one and three-quarter horsepower. It has a cooling capacity of eight thousand seven hundred fifty BTUs per hour, making it suitable for various air conditioning needs. The unit operates at a voltage of two hundred eight to two hundred thirty volts, single phase, sixty hertz.

• Operating range supports medium low temperature.
• Equipped with a hermetic compressor and R404a refrigerant.
• Standard electrical connection with BX conduit.

Product Highlights

This condensing unit offers reliability, energy efficiency, and low sound and vibration during operation. It is ideal for air conditioning systems, compressors, and various refrigeration applications.

Product Information

Standard Information

• Manufacturer: Copeland
• Model Number: FFAP-017Z-CFV-072

Technical Specifications

• Power Rating: 1-3/4 hp
• Cooling Capacity: 8750 BTU/H
• Voltage Rating: 208-230 V, 60 Hz, 1 Phase
• EER Rating: 7.9
• Weight: 114 lbs
• Fuse Size: 25 A
• Flow Rate: 1070 cfm
• Dimensions: 24.1 inches L x 18.3 inches W x 16.6 inches H
• Material: Steel
• Refrigerant Type: R-134a, HFC
• Liquid Line Size: 3/8 inch sweat
• Suction Line Size: 7/8 inch sweat
• Temperature Rating: 90 degrees F
• Circuit Amperage Rating: 17.2 A
