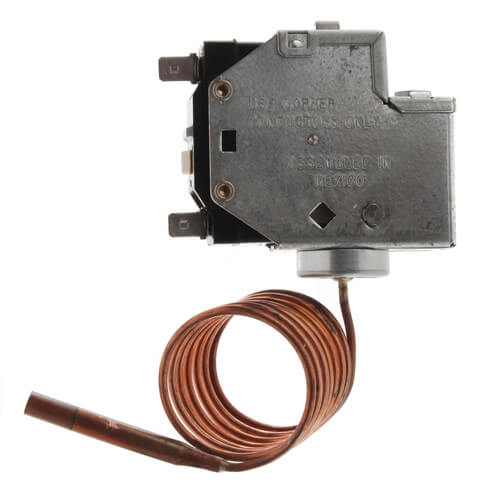

Johnson Controls P20BB-1C Air Conditioning Pressure Cutout Control 36 Inch Capillary

Product Description

The Johnson Controls P20BB-1C Air Conditioning Pressure Cutout Control is a high and low pressure control for non-corrosive refrigerants.

• Accurate repeatability
• Capillary Length: 36 inches with 1/4 inch sweat section
• Manual reset with NEMA 1 enclosure

Product Highlights

Field replacement unit with quick connect connectors, uses a screwdriver adjustable set point.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P20BB-1C

Technical Specifications

• Item: AC Pressure Cutout Control
• Type: High/Low Pressure
• Reset: Manual
• Function: Single

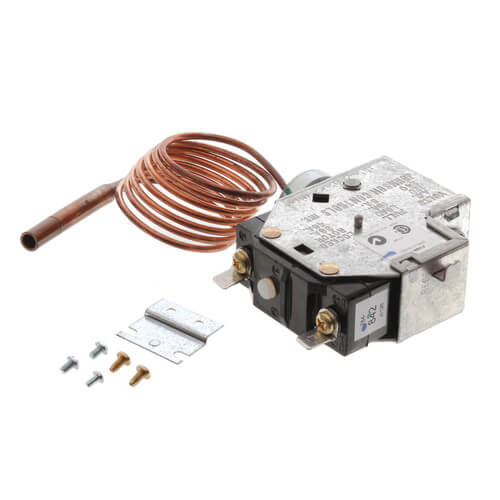

• Includes: Universal mounting bracket
• Mounting: Bracket
• Enclosure: NEMA 1
• Connection: Sweat
• Open (PSI): 40
• Application: Low Pressure Applications
• Close (PSI): Lockout
• Range (PSI): 7 to 150
• Switch Type: SPST
• Switch Action: Opens on Low Pressure
• Pressure Connection: 36 in Capillary with 1/4 in Sweat
• Capillary Length (In.): 36 in
• Country of Origin (subject to change): Mexico
