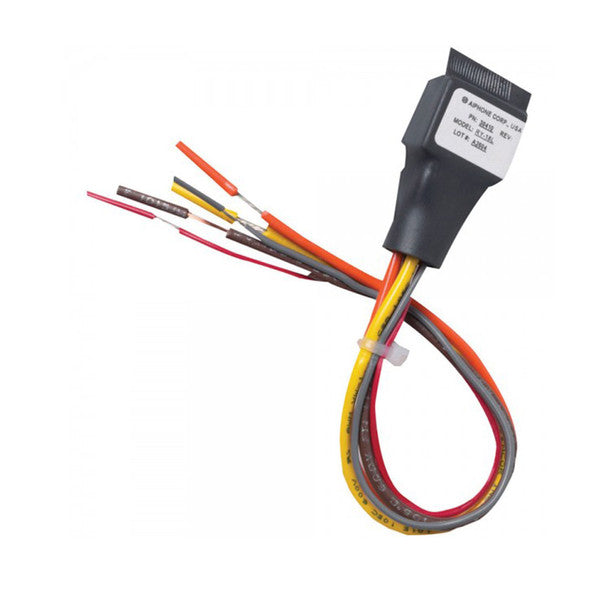

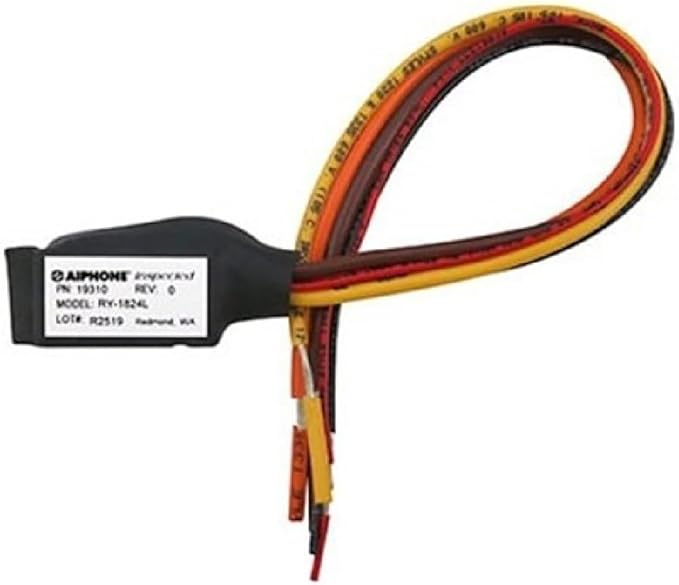

Aiphone RY-18L Door Release Relay 12-18VDC Input

Product Description

The AIPHONE RY-18L door release relay module serves as an interface between the door strike contacts on the Aiphone unit and the actual release mechanism. It provides a normally open contact for electric strikes or a normally closed contact for a magnetic lock. Recommended for JF, JK, and JO Series when using door release, and for the LEM-1DL or LEF Series when connecting a maglock.

• Form C Relay for 12-18VDC Intercom Systems
• Higher contact rating
• Both normally open and normally closed output options

Product Highlights

The RY-18L ensures that the contact rating will be sufficient for the electric strike or magnetic lock used. Its contact rating supports a majority of door release hardware available.

Product Information

Standard Information

• Brand: AIPHONE
• Manufacturer Part Number: RY-18L

Technical Specifications

• Material: ABS plastic construction
• Contact Type: Normally Open
• Brand: Aiphone
• Coil Voltage: 18 Volts
• Maximum Switching Voltage: 18 Volts
• Minimum Switching Voltage: 18 Volts (DC)
• Manufacturer: AIPHONE CORPORATION
• Part Number: RY-18L
• Wiring: 2 conductors from monitor''s door release contacts to RY-18L 2 conductors from RY-18L to strike, with power for strike wired in series
• N/C Ouptut rating: 3A at 30V DC or 125V AC
• N/O Output rating: 5A at 30V DC, 10A at 125V AC, 3A at 250V AC
• Relay Output: Brown, Red, Orange wires, 18AWG
• Relay Input: 12-18V DC, Red, Gray wires, 22AWG
• Terminations: Color-coded prewired pigtails
• Mounting: No mounting required
• Power Source: Supplied by master station
• For Use with: JF, JK, and JO Systems when using the single door release feature LEF-1DL and LEF Systems when using a magnetic lock
• Output Rating: N/O Output Rating: 5 A @ 30 VDC, 10 A @ 125 VAC, 3 A @ 250 VAC N/C Output Rating: 3 A @ 30 VDC or 125 VAC
