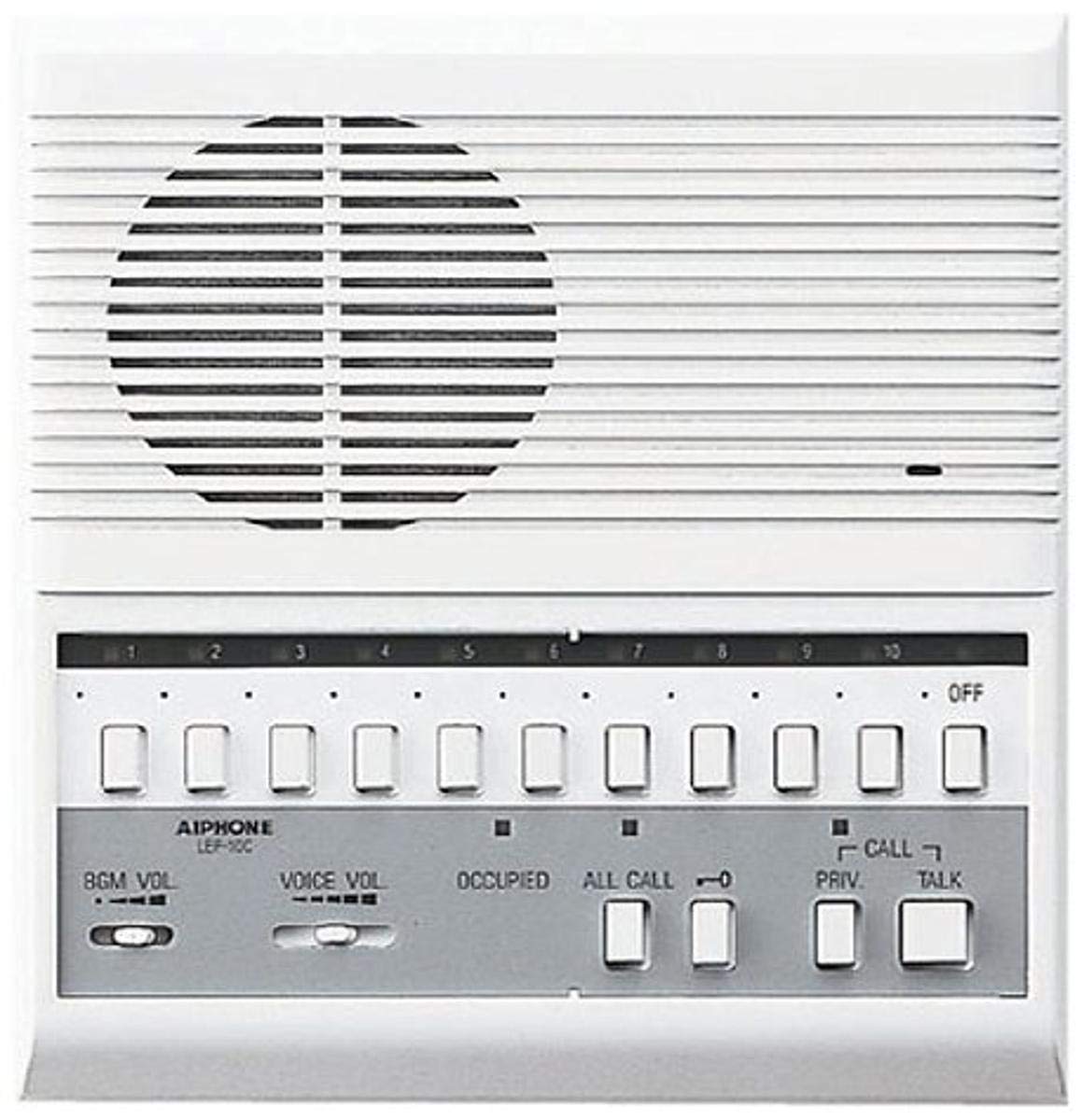

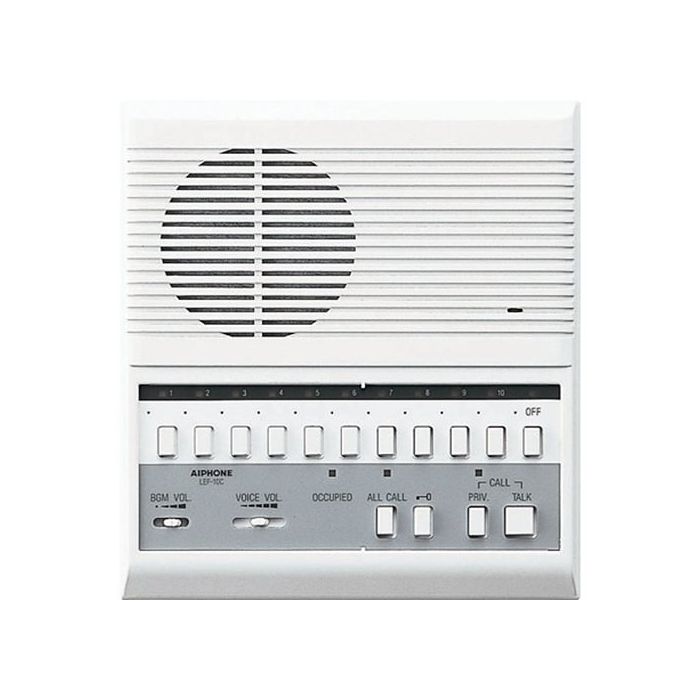

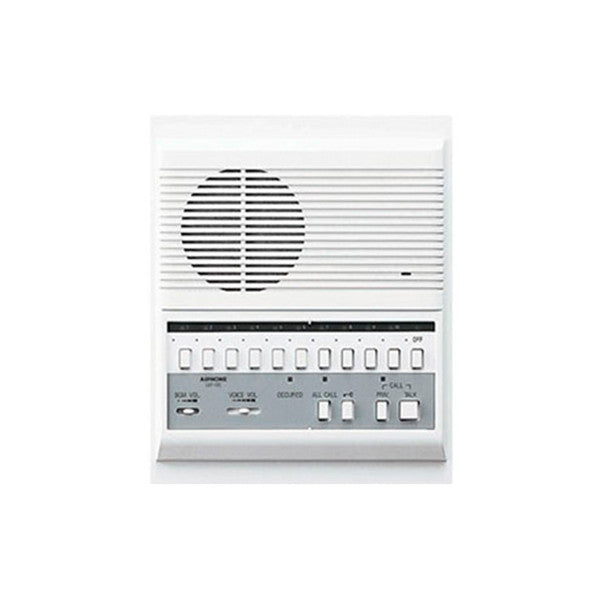

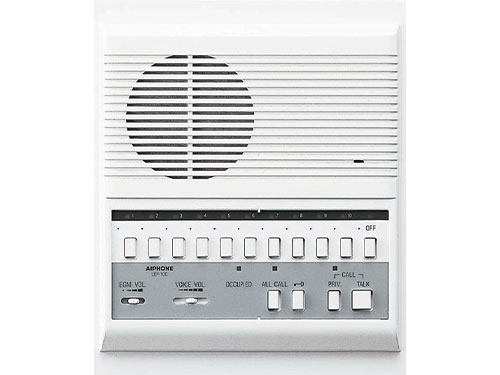

Aiphone LEF-10C LEF-10C 10-Call Semi-Flush Mount Master Station

Product Description

The AIPHONE LEF-10C is a selective calling open voice style master station, used to answer calls from other remotes or masters. The system can be designed to include any combination of master and sub stations. The LEF-10C communicates with up to ten other stations and selectively release doors, plus make an All Call and/or receive background music.

• Intermixable system with any number of master and sub stations to maximum capacity (11 units)
• Selective calling and monitoring
• Push-to-talk at master, hands-free reply at called station

Product Highlights

This master station features selective calling, door release, and all-call functionality, enhancing communication and access control within the system.

Product Information

Standard Information

• Brand: AIPHONE
• Manufacturer Part Number: LEF-10C
• Country of Origin: Japan

Technical Specifications

• Brand Name: Aiphone
• Depth: 1.4"
• Width: 7.9"
• Height: 9.4"
• Form Factor: Desktop,Surface Mount,Wall Mount
• Manufacturer: Aiphone Co., Ltd
• Product Line: Audio Systems
• Product Name: LEF-10C Intercom Master Station
• Product Type: Intercom Master Station
• Input Voltage: 12V DC
• Product Model: LEF-10C
• TAA Compliant: yes
• Product Series: LEF
• ADI Part Number: AJ-LEF10C
• Number of Buttons: 10
• Manufacturer Part Number: LEF-10C
• Style: Electronic
• Material: INTERCOM
• Light fixture form: Wall
• Item: Call Audio Master Station
• Type: Indoor
• Voltage: 12V DC
• Includes: MOUNTING HARDWARE
• Wire Type: Shield
• For Use With: LE Series
• Power Source: 12V DC
• Compatibility: Aiphone BGR-10A Radio/All Call/Chime Unit, Aiphone BG-10C All Call/Chime Adaptor, Aiphone LE-series Sub/Door Stations, Aiphone PS-1225UL Power Supply, Aiphone Master Stations:LEF Series, LEF-C Series
• Package Quantity: 1.0
• Wiring Conductors: 20 Conductors
• Distance (Ft.) @ 18AWG: 1,600 ft
• Distance (Ft.) @ 22AWG: 650 ft
• Power Consumption: 300mA
• Mounting: Wall mount
• Output: 800mW @ 20Ω (reception) 500mW @ 20Ω (transmission)
• Communication: Press-to-talk, release-to-listen at master station. Hands-free at responding station.
• Talk Channel: 1 talkpath. Occupied LED when in use.
• Wiring: 5 common wires (E, R, Y, +, -), plus 1 individual wire per station, looped. Sub stations: 2 wires homerun in single master systems, or 2 common wires (E, -), plus 1 individual wire per station, looped or homerun
• Capacity: Up to 11 stations, intermixable
• Operation Temp: 32°~104°F (0°~40°C)
• Connectivity Technology: Wired
• Number of Doors: 10
• NDAA Compliant: Yes
• Mount Type: Semi-flush Mount
• Country of Origin: JP
• Indoor/Outdoor: Indoor
