Aiphone GTV-DES104B 10-Key Video Entrance Panel Kit 1x4 Size

Product Description

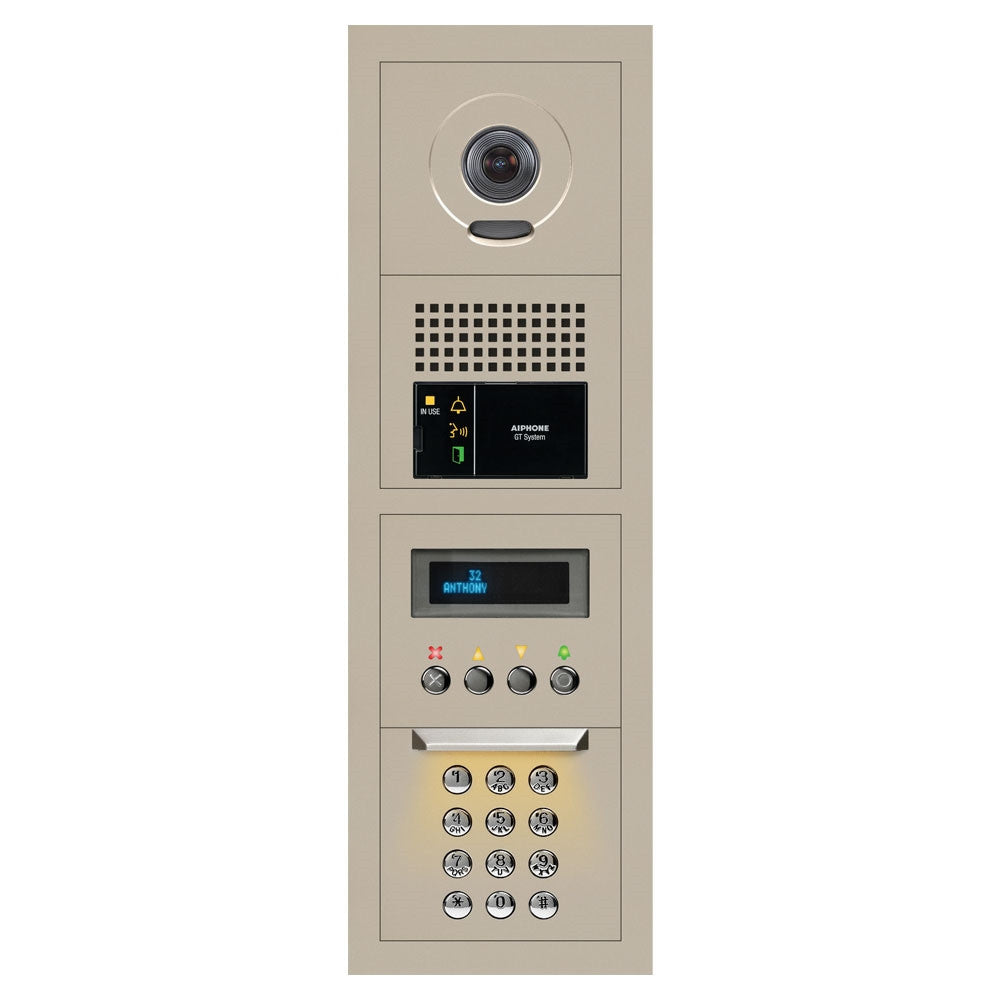

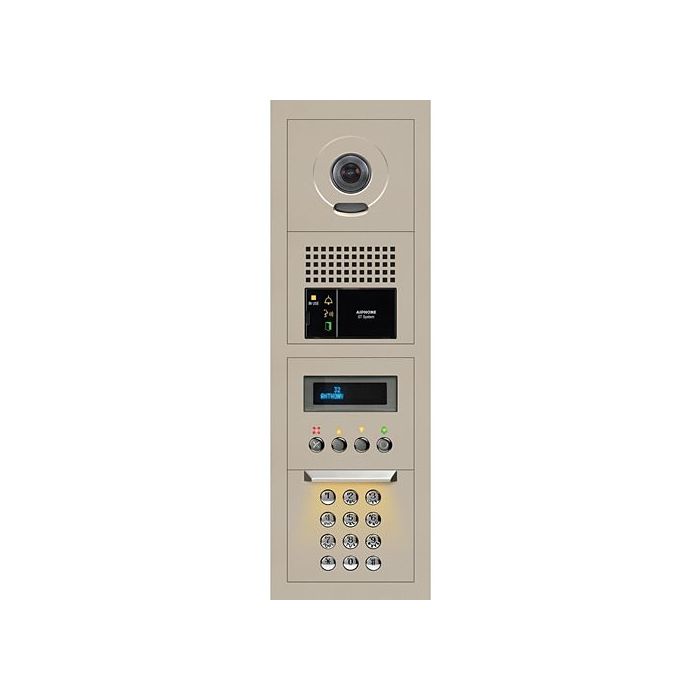

The AIPHONE GTV-DES104B is a modular video entrance station for the GT Series multi-tenant video intercom system. It features an audio module, a video module with a 170° PTZ camera, a keypad for direct dialing, and a display module. The display module shows a greeting message, tenant directory, and system status. It supports semi-flush mounting with an optional rain hood.

• Hands-free audio communication
• Video camera at entry
• Direct dialing, alphabetical scrolling, or "jump" scrolling by letter to select tenant name

Product Highlights

This kit supports up to 500 names/numbers and access control with up to 500 unique codes. It includes a PC program for loading information via USB.

Product Information

Standard Information

• Brand: AIPHONE
• Manufacturer Part Number: GTV-DES104B
• Country of Origin: Thailand

Technical Specifications

• Brand Name: Aiphone
• Manufacturer: Aiphone Co., Ltd
• Product Line: Audio/Video Systems
• Product Name: GTV-DES104B 1 x 4 Modular Video Entrance Station with Digital Directory
• Product Type: Video Entrance Panel Kit
• Input Voltage: 24V DC
• Product Model: GTV-DES104B
• TAA Compliant: no
• Product Series: GT
• ADI Part Number: AJ-GTVDES10B
• Manufacturer Part Number: GTV-DES104B
• Depth: 0.6"
• Width: 5.3"
• Height: 16.8"
• Material: Die-cast Zinc
• Durability: Vandal resistant,Weather Resistant
• Wiring Type: 2-wire
• Communication: Hands-free from entrance panel to tenant station
• Capacity: Max. 16 Entry panels per system Max. 4 Concierge stations per system Max. 500 Tenant stations per system Max. 4 Tenant stations per unit
• Wire: Two sets of 2-conductor, PE insulation (two common buses for audio & video) Aiphone #872002, 2 conductor PE insulated, non-shielded, 11.05 pf/ft (Audio) Aiphone #871802, 2 conductor PE insulated, non-shielded, 11.05 pf/ft (Video)
• Wiring Distance: GT-BC to farthest entrance: 980' GT-BC to farthest tenant (audio): 980' GT-VBC to farthest entrance: 980' GT-VBC to farthest tenant (video): 500'
• Voltage: 24V DC
• Controls: Button
• Mounting: Surface
• Application: GT Series Versatile Multi-Tenant Security Intercom and Outdoor Use
• ADI Part Number Replaces: AJ-GTVDES14A
• Model Number Replaces: GTV-DES104A
• Form Factor: Flush Mount
• Mount Type: Flush Mount
