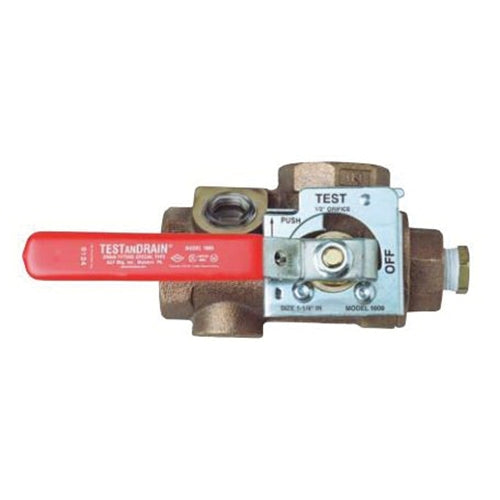

AGF AGF1000.2 TESTanDRAIN 1000 Bronze Sectional Floor Control Test and Drain Valve 2 in NPT

Product Description

The AGF AGF1000.2 is a reliable sectional floor control test and drain valve designed for wet fire sprinkler systems. This valve combines both test and drain functions into a single, compact unit, rated for 300 psi. Its design reduces the need for multiple connections, saving time and space during installation.

• Single handle ball valve
• Tamper-resistant features
• Easy access port for system checks

Product Highlights

This valve is easy to install and maintain, providing essential functionality for sprinkler systems.

Product Information

Standard Information

• Brand: AGF
• Manufacturer: AGF Manufacturing

Technical Specifications

• Model: 1000
• Material: Bronze
• Pressure Rating: 300 psi
• Ball Material: Chrome-Plated Brass
• Seat Material: Impregnated Teflon
• Stem Material: Rod Brass
• Connection Size: 2 in
• Connection Type: NPT
• Dimensions: 6-7/16 in L x 10-7/8 in H
• Applications: For wet fire sprinkler systems
• Standards/Certifications: UL and ULC listed, NYC-BSA No. 720-87-SM, NFPA-13, NFPA-13R and NFPA-13D, FM approved
