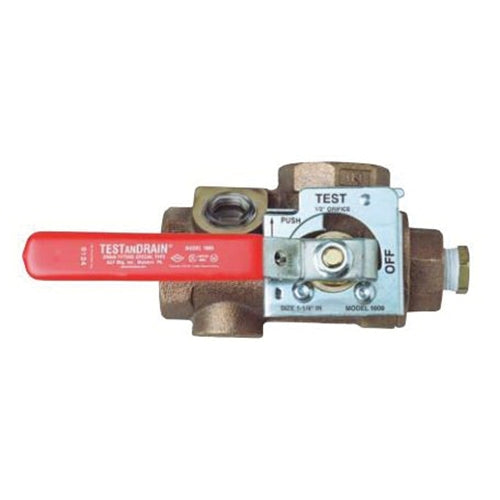

AGF AGF1000.1.38 TESTanDRAIN 1000 Bronze Sectional Floor Control Test and Drain Valve with 3/8 in Orifice

Product Description

The AGF AGF1000.1.38 is a test and drain valve designed for wet fire sprinkler systems. This compact valve is rated for three hundred psi and is engineered with a single handle for both testing and draining functions. The design minimizes the need for multiple connections found in traditional assembly loops, providing a more efficient solution.

• Compact, one-handle design for ease of use
• Tamper-resistant test orifice and sight glasses
• Includes repair kits for easy maintenance

Product Highlights

This product is made in the USA and ensures reliability and code compliance.

Product Information

Standard Information

• Brand: AGF
• Manufacturer: AGF Manufacturing

Technical Specifications

• Model: 1000
• Material: Bronze
• Item Name: Sectional Floor Control Test and Drain Valve with 3/8 in Orifice
• Pressure Rating: 300 psi
• Connection Size: 1 in
• Connection Type: NPT
• Dimensions: 5-1/16 in L x 6-3/8 in H
• Ball Material: Chrome-Plated Brass
• Seat Material: Impregnated Teflon
• Stem Material: Rod Brass
• Standards/Certifications: UL and ULC listed, NYC-BSA No. 720-87-SM, NFPA-13, NFPA-13R and NFPA-13D, FM approved
• Applications: For wet fire sprinkler systems
