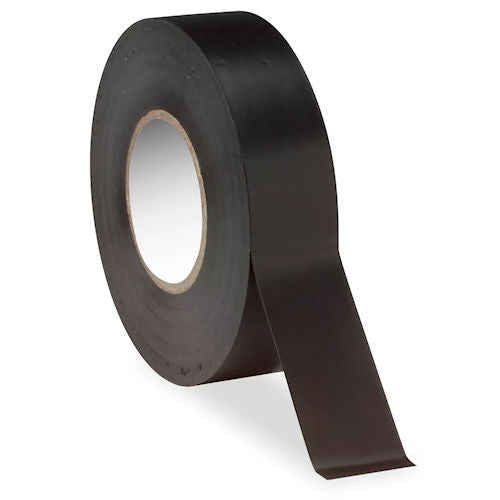

Ag Manufacturing 224 Pvc Electrical Tape 0.75 in X 60 Ft 7 Mil

Product Description

The AG Manufacturing 224 is a 7-mil black PVC electrical tape designed for insulating, bundling, and protecting electrical conductors and connections. Measuring 0.75 inches wide by 60 feet long, this tape delivers consistent dielectric protection across a full roll without splicing. The 7-mil thickness provides durable coverage for low-voltage wiring applications while conforming tightly around conductors, terminals, and wire splices. Electricians and maintenance technicians reach for this tape when wrapping wire joints, color-coding circuits, or securing cable bundles in panel work, conduit runs, and general electrical service.

This tape is suited for residential and light commercial electrical work. Common applications include insulating wire splices at junction boxes, wrapping terminal connections in control panels, and securing cable harnesses in equipment installations. The black color is standard for phase identification and general insulation duty. It performs in typical indoor wiring environments where a reliable, conformable PVC tape is required.

Key Features

• 7-mil PVC construction provides consistent dielectric insulation thickness
• 0.75-inch width fits standard hand-held tape dispensers and fits neatly around most wire gauges
• 60-foot roll length reduces mid-job roll changes on larger wiring tasks
• Black color suitable for general insulation and phase-identification applications
• Conformable backing wraps cleanly around irregular surfaces, terminals, and splices

Compatibility

Designed as a general-purpose PVC electrical tape for standard low-voltage insulation and bundling applications in residential and light commercial electrical work.

Installation Notes

Installation and application should be performed by a licensed electrician or qualified technician in accordance with applicable NEC requirements. De-energize and lock out the circuit before wrapping any splices or terminals. Stretch the tape slightly during application to ensure a tight, void-free wrap, and overlap each pass by at least half the tape width. Avoid applying electrical tape to conductors or connections that exceed the temperature or voltage rating of the tape material.

Technical Specifications

• Width: 0.75 inches
• Length: 60 feet
• Thickness: 7 mil
• Material: PVC
• Color: Black
• UPC: 780730002245

Standard Information

• Brand: AG Manufacturing
• Manufacturer Part Number: 224
