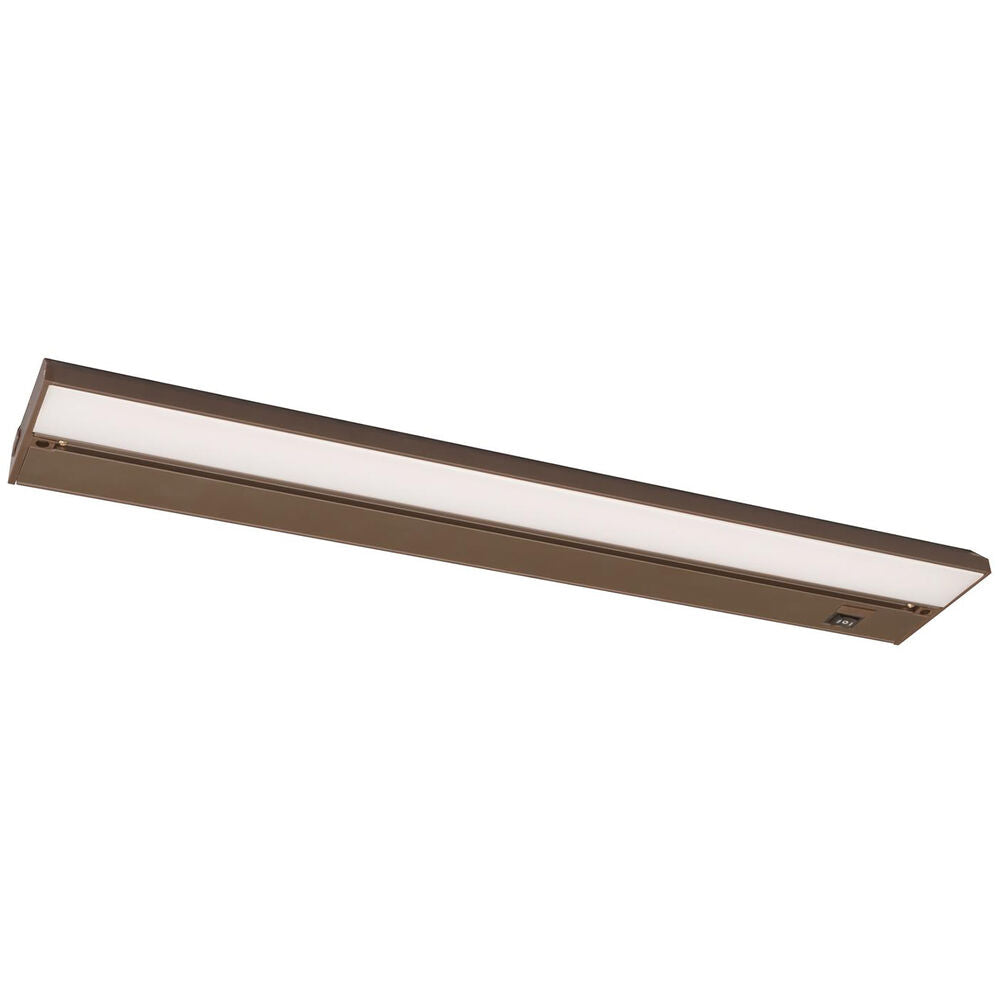

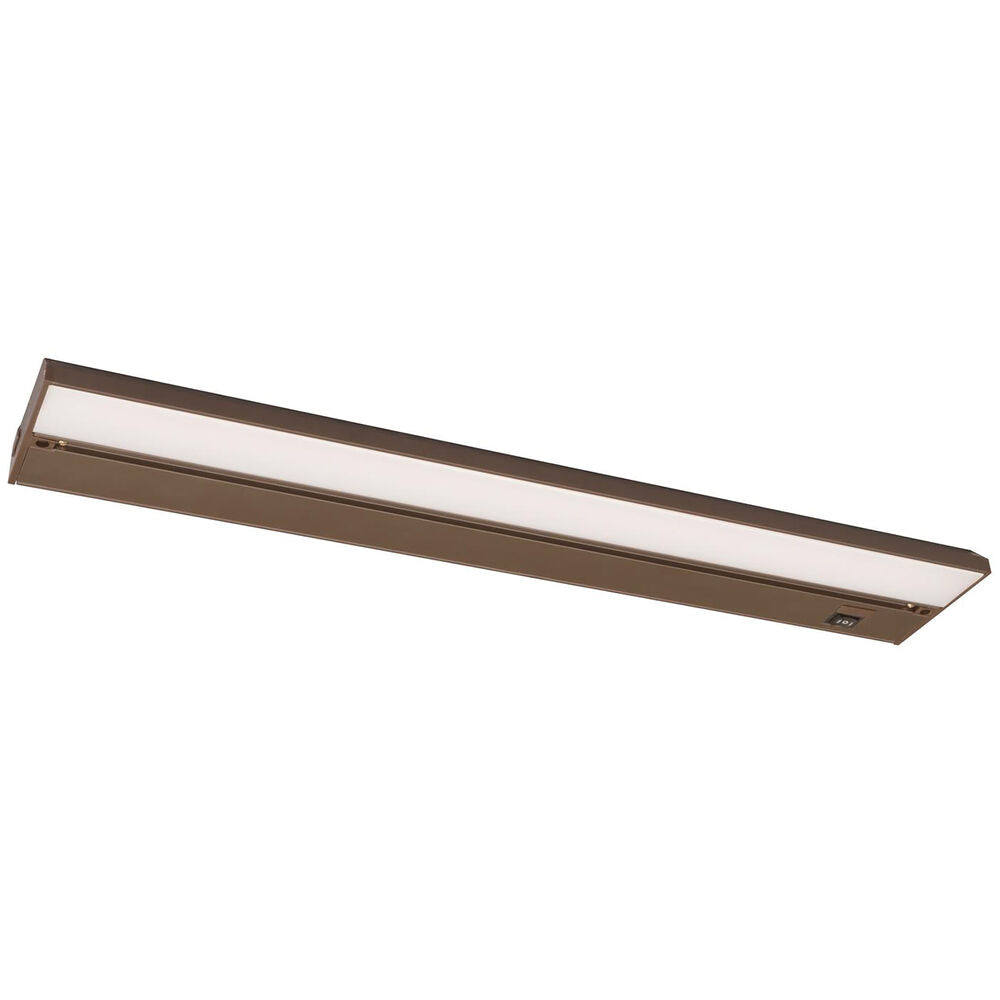

Afx NLLP2-22RB LED undercabinet 10.7 W 22 in

Product Description

AFX NLLP2-22RB is an LED undercabinet light designed for various applications. This 22-inch fixture operates at 120V and consumes 10.7W, providing 656/746/755 lumens. It features a 90 CRI and adjustable color temperature options of 2700K, 3000K, and 4000K, making it suitable for kitchens, study areas, and displays. The low-profile design and linkable capability up to 200 watts offer installation flexibility.

• 90 CRI and adjustable color temperature (2700K/3000K/4000K) for versatile lighting.
• Low profile design and linkable up to 200 watts for flexible installation.

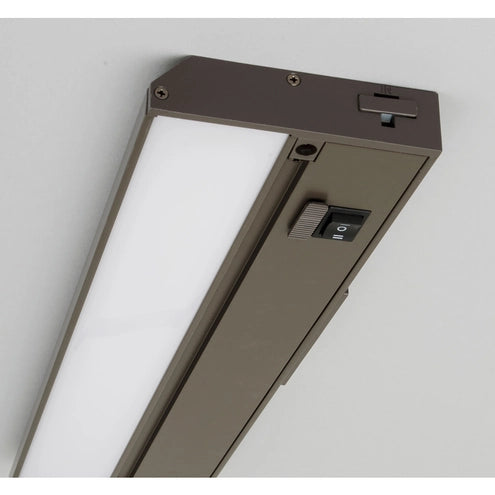

• Direct wire capability with multiple knockouts and captive mounting screws for easy setup.

Product Highlights

This LED undercabinet light offers high color rendering, adjustable color temperatures, and a low-profile design for versatile and efficient illumination.

Product Information

Standard Information

• Brand: AFX
• Manufacturer Part Number: NLLP2-22RB
• Country of Origin: China

Technical Specifications

• Length: 22 in
• Width: 3-3/4 in
• Height: 1 in
• Fixture Wattage: 10.7 W
• Series: NLLP2
• Product Type: LED Undercabinet Light
• Lumens: 656/746/755 lm
• Color Temperature: 2700/3000/4000K
• CRI: 90
• Linkable Wattage: 200 watts
• Housing Material: Extruded aluminum
• Diffuser Material: White polycarbonate
• Input Voltage: 120 V
• Dimmable: Yes
• Includes: BX/NM Cable Connector, Direct Connector, Slide Switch Lock
• Linkable: Yes
• Standards: cETLus
• Rated Life: 50,000 hr
• Cord Length: 5.0 ft
• Switch Style: Slide
• Dimming Range: 10%
• For Bulb Type: Integrated LED
• Housing Finish: Oil-Rubbed Bronze
• Dimming Method: ELV/TRIAC
• Compliance: CA Title 24
• Connection Type: Plug In or Direct-Wire
• Switch Function: High/Low
• Lighting Technology: LED
• Certifications: ENERGY STAR
• Brand: AFX
• Lamping Type: SMT-Array
• Lumens Per Watt: 69.72
• Collection: Noble
• Incandescent Equivalent: 60W
• Mounting: Under Cabinet
