Afc Cable Systems 6108-22-00 LIQUID-TUFF Liquidtight Conduit 2-1/2 inch 25 Foot Carton

Product Description

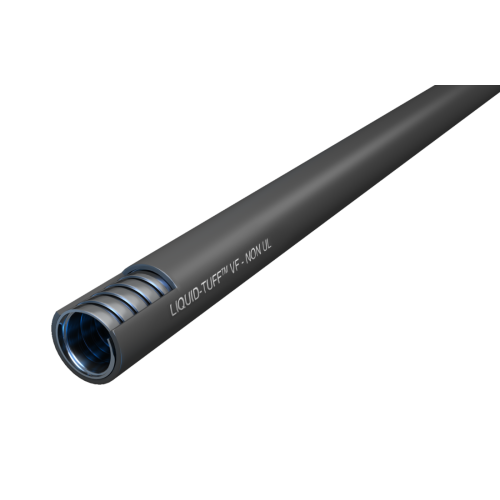

The AFC CABLE SYSTEMS 6108-22-00 LIQUID-TUFF™ liquidtight flexible steel conduit is a general-purpose, non-UL raceway resistant to oil and sunlight. Designed for applications where UL or other agency approvals are not required. Features a flame-retardant PVC jacket over a zinc-coated, galvanized low carbon steel core, offering mechanical and moisture protection for conductors in 600 V and lower circuits.

• LIQUID-TUFF™ Liquidtight Flexible Steel Conduit VF
• Mechanical and moisture protection for conductors
• Sunlight resistant

Product Highlights

Ideal for use in various applications requiring a flexible, liquid-tight conduit that does not require UL certification.

Product Information

Standard Information

• Brand: AFC CABLE SYSTEMS
• Manufacturer Part Number: 6108-22-00
• Country of Origin: USA

Technical Specifications

• Trade Size: 2-1/2 Inch
• Part Length (ft): 25
• Part Weight (lb/ft): 1.21
• Material Type: Steel
• Surface Finish: PVC
• Color: Gray
• Max Temperature Rating Dry F: 140
• Min Temperature RatingF: -4
• Oil Resistant: true
• Applications: 600 V and lower circuits.
• Type: Non-UL Liquidtight VF Flexible Steel Conduit
• Sub Brand: LIQUID-TUFF
• Height: 2-7/8 Inch
• Length: 25 Foot
• Width: 2.875 in
• Finish: PVC
• Material: Steel
• Color Family: Gray
