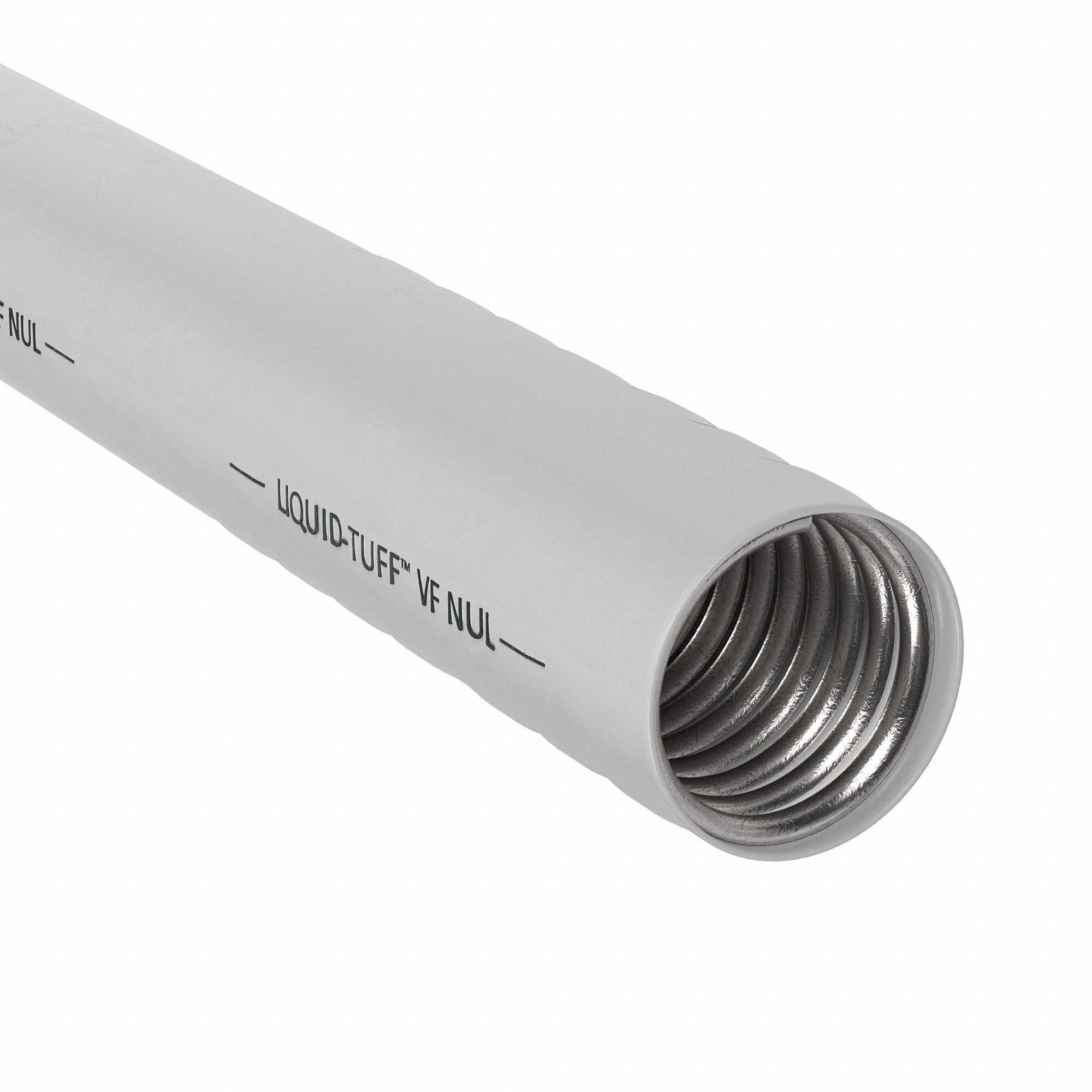

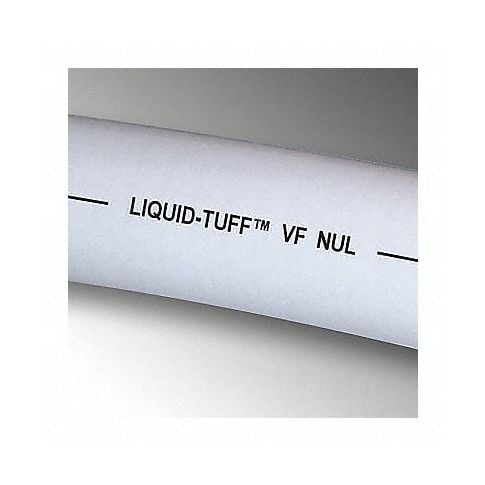

Afc Cable Systems 6106-35-00 Liquidtight Flexible Metal Conduit 1-1/2 in. dia., 150 ft. Reel

Product Description

The AFC CABLE SYSTEMS 6106-35-00 Liquidtight Flexible Steel Conduit, Type VF is a general purpose Non-UL raceway that is oil and sunlight resistant. Designed to be used for specific applications where Underwriters Laboratories Inc. (UL) or other agency approvals are not required. This high-flex conduit has an interlocking construction.

• Type VF
• Non-UL LIQUID-TUFF Liquidtight Conduit
• Flame Retardant PVC Jacket

Product Highlights

Liquidtight, Flexible Steel Conduit, Type VF is a general purpose Non-UL raceway that is oil and sunlight resistant with flame retardant PVC jacket.

Product Information

Standard Information

• Brand: AFC CABLE SYSTEMS
• Manufacturer Part Number: 6106-35-00
• Country of Origin: US - United States

Technical Specifications

• Finish: PVC
• Material: Steel
• Trade Size: 1-1/2 in
• Color Family: Gray
• Length: 150 ft.
• Manufacturer Part Number: 6106-35-00
• Bend Radius: 4 in
• Jacketed: Yes
• Jacket Material: Flame Retardant PVC
• Conduit Color: Gray
• Flammability Rating: ANSI
• Minimum Operating Temperature: -22 0 F
• Maximum Operating Temperature: 165 0 F
• Flexibility: Flexible
• Wet Location: Yes
• Usable Temperature Range: -22 0 F to 165 0 F
• Resistance Properties: Oil Resistant; UV Resistant
• Approval Ratings: ANSI; JIC; NFPA
• Liquid Tight Conduit Application: Metallic; Non-UL Required
• Standards: ANSI/NFPA-79; JIC Standards
• Inside Diameter: 1.58 in
• Outside Diameter: 1.87 in
• Item: Flexible Metallic Liquid Tight Conduit
• Series: 6100
• Voltage: 600 V
• Flexible Conduit Core Material: Hot Dipped Galvanized Steel
• Special Features: Very Flexible
• Manufacturer: AFC
• Condensed Mfg Number: 61063500
• MPN: 6106-35-00
• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N
• Harmonization Code: 8307106000
• GDS Category Name: Liquid Tight Conduit
• GDS Family Name: Conduit
• GDS Segment Name: Electrical
• UNSPSC Class ID: 12
• UNSPSC Commodity Name: Wire management components and busways
• UNSPSC Commodity ID: 02
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
