Afc Cable Systems 6103-30-00 Non-UL LIQUID-TUFF Liquidtight Conduit 100 Foot

Product Description

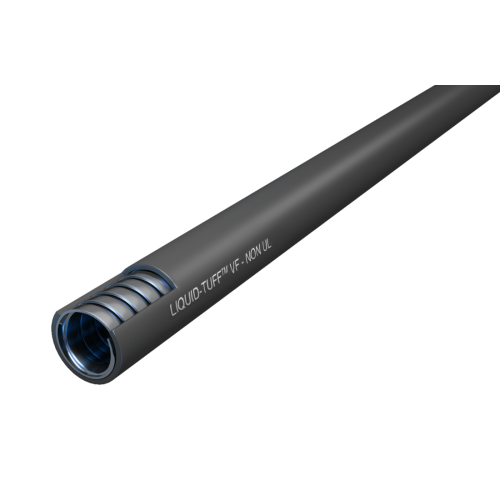

AFC CABLE SYSTEMS 6103-30-00 LIQUID-TUFF liquidtight flexible steel conduit, Type VF, is a general-purpose, non-UL raceway that is oil and sunlight resistant. Designed for applications where UL or other agency approvals are not required. Features a flame-retardant PVC jacket and a hot-dipped zinc galvanized low carbon steel core.

• Mechanical and moisture protection for conductors
• Sunlight resistant
• Flame retardant PVC jacket
• Very flexible

Product Highlights

The AFC Cable Systems LIQUID-TUFF conduit is ideal for lower circuit, vibration, and movement absorbing applications.

Product Information

Standard Information

• Brand: AFC CABLE SYSTEMS
• Manufacturer Part Number: 6103-30-00
• Country of Origin: US

Technical Specifications

• Trade Size: 3/4 in
• Part Length (ft): 100
• Part Weight (lb/ft): 0.33
• Material Type: Steel
• Surface Finish: PVC
• Color: Gray
• Max Temperature Rating Dry F: 140
• Min Temperature RatingF: -4
• Oil Resistant: true
• Bend Radius: 4-1/4 in
• Country of Origin: US
• Finish: Hot Dipped Zinc Galvanized
• Flexibility: Very Flexible
• Inside Diameter: 0.82/0.84 in
• Length: 100 ft
• Manufacturer Name: Atkore
• Outside Diameter: 1.03/1.05 in
• Temperature Rating: -20 to 60 deg C
• Type: Type VF
• Voltage Rating: 600 V AC
• Material: Steel
• Color Family: Gray
• Jacket: PVC
• Package Type: Coil
• MPN: 6103-30-00
