Product Description

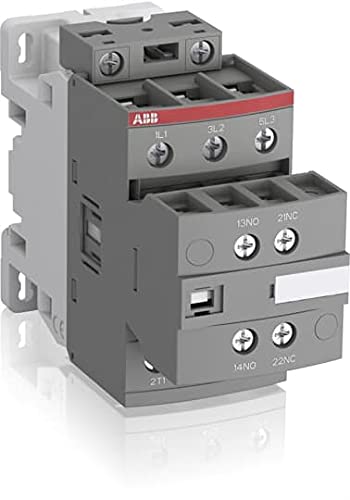

The ABB AF26-30-11-13 is a three-pole contactor designed for control applications up to 690V AC and 220V DC. This contactor is suitable for various industrial applications including motor control, lighting, and power distribution systems.
- Voltage range: 100-250V AC/DC
- Current rating: 45 Amps
- Auxiliary contacts: 1NO/1NC
Product Highlights
Engineered for industrial applications, the ABB AF26-30-11-13 contactor offers versatile voltage compatibility, durable construction, and reliable performance, ensuring robust operation in demanding environments.
Product Information
Standard Information
-
Brand: ABB
-
Model: AF26-30-11-13
Technical Specifications
-
Voltage Range: 100-250V AC/DC
-
Current Rating: 45 Amps
-
Poles: 3
-
Control Voltage: AC110V, AC230V, DC24V, DC110V
-
Coil Power: 16.2-12.2 VA
-
Frequency: 50/60 Hz
-
HP @ 1 Phase - 120V: 2 hp
-
HP @ 1 Phase - 240V: 3 hp
-
HP @ 3 Phase - 208V: 7.5 hp
-
HP @ 3 Phase - 240V: 7.5 hp
-
HP @ 3 Phase - 480V: 15 hp
-
Depth: 111.5 mm
-
Width: 45 mm
-
Height: 86 mm
-
Net Weight: 0.35 kg
-
Operating Time: 13-98 ms (Coil De-energization and NC Contact Closing), 11-95 ms (Coil De-energization and NO Contact Opening), 38-90 ms (Coil Energization and NC Contact Opening), 40-95 ms (Coil Energization and NO Contact Closing)
-
Thermal Amperage: 16/50 A (at 40 degrees Celsius)
-
Max. Operating Watts: 11 kW (at 380/400V, 415V), 15 kW (at 440V, 500V, 690V), 6.5 kW (at 220/230/240V)
-
Impulse Withstand Voltage: 6 kV
-
Aux. Contact Configuration: 1NO/1NC
-
Rated Short-Time Withstand Current: 350 A (at 40 degrees Celsius for 10 s), 50 A (at 40 degrees Celsius for 15 min), 150 A (at 40 degrees Celsius for 1 min), 700 A (at 40 degrees Celsius for 1 s), 225 A (at 40 degrees Celsius for 30 s)
-
Rated Insulation Volts: 600/690V
-
Coil Volts: 100 to 250V AC/DC
-
Standards: IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
-
Country of Origin: France
