AEROSUSA Aerosusa 1732014617 DES-PDM Q 17G Cable Entry Plate (17 Entries)
AEROSUSA Aerosusa 1732014617 DES-PDM Q 17G Cable Entry Plate (17 Entries)

Aerosusa 1732014617 DES-PDM Q 17G Cable Entry Plate (17 Entries)

Brand: AEROSUSA
SKU: 1732014617
Availability: In Stock

Ships same day if ordered by 12 pm
$49.59
$49.59
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

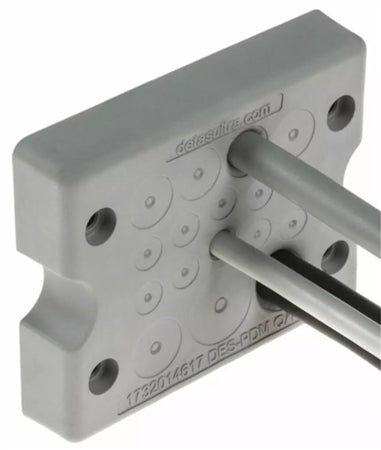

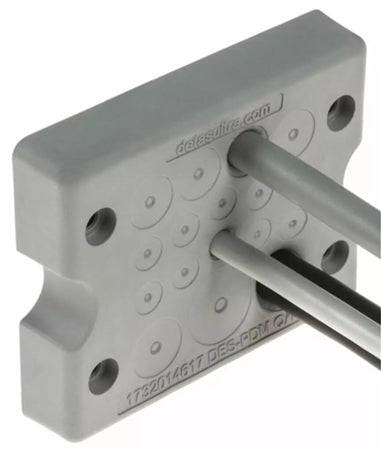

The AerosUSA 1732014617 is a DES-PDM Q 17G cable entry plate for non-terminated cables, providing 17 sealed entries and an internal frame for panel mounting. It fits 1.81" x 1.81" panel cutouts and includes multiple membrane sizes for cables from 2.8 mm to 16.2 mm diameters. The housing is thermoplastic elastomer (TPE) with IP66 protection, UL 94 V0 flammability rating, and multiple approvals.

  • Fits 1.81" x 1.81" panel cutouts; plate screw mounted to the panel wall with internal reinforcement frame
  • Seventeen cable entries: (10) 2.8–6.5 mm, (4) 4.6–10.2 mm, (2) 6.8–12 mm, (1) 8.6–16.2 mm
  • Double membrane provides strain relief and water resistance; IP66, UL 94 V0, NEMA 12, C UR US, Ecolab, RoHS

Product Highlights

Sealed 17-entry TPE cable plate with IP66 protection and UL 94 V0

Product Information

Standard Information

  • Brand: AEROSUSA
  • Manufacturer Part Number: 1732014617
Technical Specifications
Manufacturer
AerosUSA
Manufacturer Part Number
1732014617
Model
DES-PDM Q 17G
Housing Material
Thermoplastic elastomer (TPE)
Cable Entries
17
Cable Diameter
(10) 0.11-0.26" (2.8-6.5 mm), (4) 0.18-0.40" (4.6-10.2 mm), (2) 0.27-0.47" (6.8-12 mm), (1) 0.34-0.64" (8.6-16.2 mm)
Operating Temperature
-40 °C to 105 °C (-40 °F to 221 °F)
Overall Dimensions
2.91" x 2.36" x 0.58" (L x W x H)
Cutout Dimensions
1.81" x 1.81"
Flammability Rating
UL 94 V0
IP Rating
IP66
Approvals
NEMA 12 (indoor use), C UR US, Ecolab, RoHS Compliant
Mounting Type
Screw mounted to the panel wall with internal reinforcement frame
Application
For electrical and telecommunication cabinets; designed for non-terminated cables
UV Resistance
UV resistant
