Aerosusa 1732012414 DES-PDM 24/14G Cable Entry Plate 14 Entries

Product Description

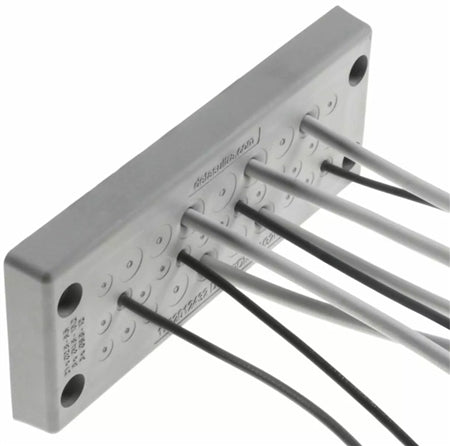

The AerosUSA 1732012414 DES-PDM 24/14G cable entry plate is a screw-mounted plate with an internal frame designed for non-terminated cables and provides 14 cable entries with IP66 protection. It fits a 4.41" x 1.42" panel cutout and measures 5.85" x 2.35" x 0.55". Ten small entries accept 2.8–6.5 mm cables and four large entries accept 14.5–22 mm cables. The TPE double membrane provides strain relief, water resistance, UV resistance, and UL 94 V0 flammability rating.

• Screw-mounted plate with internal frame for panel reinforcement
• Fourteen entries: (10) 2.8–6.5 mm and (4) 14.5–22 mm; fits 4.41" x 1.42" cutout
• TPE double membrane; IP66, UL 94 V0; temperature range -40 C to 105 C

Product Highlights

IP66-rated TPE cable plate with 14 entries, internal frame, and UL 94 V0

Product Information

Standard Information

• Brand: AEROSUSA
• Manufacturer Part Number: 1732012414

Technical Specifications

• Manufacturer Part Number: 1732012414
• Brand: AerosUSA
• Model: DES-PDM 24/14G
• Material: Gray thermoplastic elastomer (TPE)
• Cable Entries: 14 (10 small, 4 large)
• Cable Diameter: (10) 0.11-0.26" (2.8-6.5 mm); (4) 0.57-0.87" (14.5-22 mm)
• Operating Temperature: -40 C to 105 C (-40 F to 221 F)
• Overall Dimensions: 5.85" Length x 2.35" Width x 0.55" Depth
• Cutout Dimensions: 4.41" x 1.42"
• Mounting Type: Screw mounted to panel wall
• Ingress Protection Rating: IP66
• Flammability Rating: UL 94 V0
• Approvals: NEMA 12, C UR US, Ecolab, RoHS Compliant
• Application: Electrical and telecommunication cabinets; made for non-terminated cables
• Features: Internal frame, double membrane for strain relief and water resistance, UV resistant
