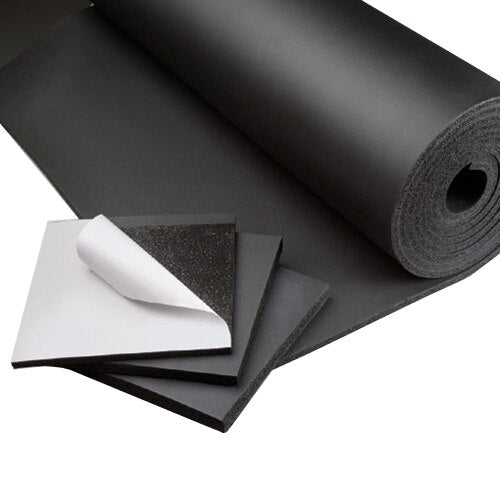

Aeroflex M926-ACSR34 S2S Aerocel 3/4-in x 48-in x 50-ft Insulation Roll

Product Description

The AEROFLEX M926-ACSR34 S2S Aerocel Insulation Roll is a closed-cell elastomeric foam insulation designed for thermal performance and moisture protection. This 3/4 inch thick, 48 inch wide, 50 foot long roll is suitable for large pipes, chillers, tanks, and air handling units, reducing both structure-borne and air-borne sound. It features a proprietary blend of non-polar EPDM rubber for consistent, long-lasting performance.

• Closed-cell elastomeric foam construction with non-polar EPDM rubber.
• Temperature range of -297 to 257 deg F and water vapor permeability of 0.03 perm-in.
• Features a Flame Spread Index of 25 and Smoke Developed Index of 50.

Product Highlights

This Aeroflex Aerocel insulation roll provides thermal and acoustic insulation with excellent moisture and UV resistance for various applications.

Product Information

Standard Information

• Brand: AEROFLEX
• Manufacturer Part Number: M926-ACSR34 S2S

Technical Specifications

• Color: Black
• Length: 50 ft
• Thickness: 3/4 in
• Width: 48 in
• Specific Gravity: 0.04-0.06
• Temperature Range: -297 to 257 deg F (-182 to +125 deg C)
• Thermal Conductivity: 0.245 Btu-in/hr-sq-ft-deg F at Mean temp 75 deg F
• Max Water Absorption: 0.2% by volume
• Water Vapor Permeability: 0.03 perm-in
• Flammability: Self-extinguishing
• Flame Spread Index: 25
• Smoke Developed Index: 50
• Facing: Plain
• Fiber-free: Yes
• UV & Moisture Resistance: Excellent
• Application: For Schools, Hospitals, Hotels, Public Buildings, Corrections Facilities, Clean Rooms/Processing
• Material: EPDM-based Elastomeric Foam Rubber
• Water Vapor Sorption: 0 %
• PVC Content: Less than 1%
• Corrosive on Stainless Steel: Non-corrosive
• Certifications: GREENGUARD Gold Certified, ASTM E84 25/50, Environmental Product Declaration (EPD) Type III, Health Product Declaration (HPD), UL 723, and various other industry standards
