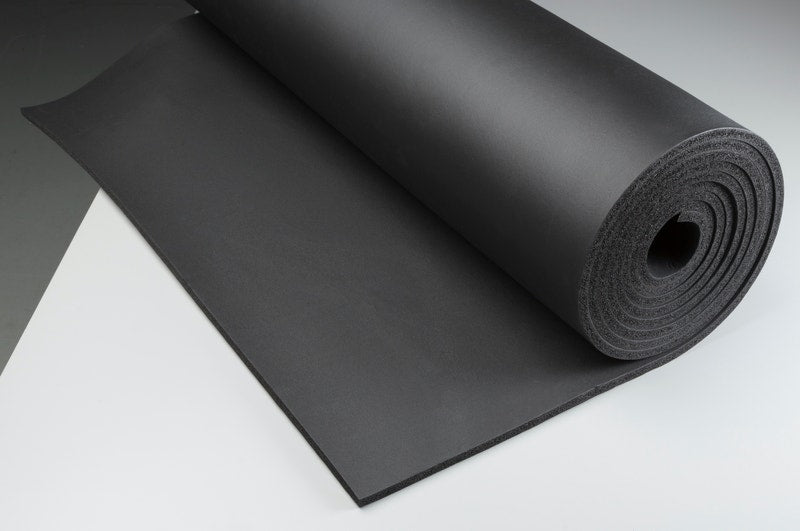

Aeroflex M923-ACSR12 S2S Aerocel EPDM AC Elastomeric Roll 1/2 inch x 48 inch x 70 feet

Product Description

The AEROFLEX M923-ACSR12 S2S is an Aerocel EPDM AC Elastomeric Roll, designed for insulating HVAC, refrigeration, and plumbing piping and equipment. This elastomeric insulation has a 1/2 inch thickness, a length of 70 feet, and a width of 48 inches. It features a temperature rating from -297 to 220 degrees F and a thermal conductivity of 0.245 Btu-in/hr-sq-ft-deg F, making it suitable for various applications including schools and hospitals.

• Flexible, closed-cell and lightweight EPDM-based elastomeric foam rubber for insulating HVAC, refrigeration and plumbing piping & equipment.
• Chemically non-polar and hydrophobic, preventing moisture induction or reaction, and maintaining greater UV resistance than NBR/PVC rubber.
• Naturally microbial-resistant, contains less than 1% PVC content, non-corrosive on stainless steel, and passes ASTM E84 25/50 through 2 inches thick.

Product Highlights

Aerocel EPDM elastomeric roll offers superior insulation with high UV resistance and microbial resistance, ideal for HVAC and plumbing systems.

Product Information

Standard Information

• Brand: AEROFLEX
• Manufacturer Part Number: M923-ACSR12 S2S

Technical Specifications

• Manufacturer: Aeroflex USA
• Brand: Aerocel
• DI Part Number: RURL005E
• Manufacturer Part Number: M923-ACSR12 S2S
• Unit of Measure: RL
• Application: For Schools, Hospitals, Hotels, Public Buildings, Corrections Facilities, Clean Rooms/Processing
• Flame Spread Index: 25
• Insulation Thickness: 1/2 inch
• Item Name: Elastomeric Roll
• Length: 70 feet
• Material: Elastomeric
• Smoke Developed Index: 50
• Sub Brand: AC Roll
• Temperature Rating: -297 to 220 degrees F
• Thermal Conductivity: 0.245 Btu-in/hr-sq-ft-deg F
• Water Vapor Permeability: 0.03 perm-inch
• Water Vapor Sorption: 0 %
• Width: 48 inches
