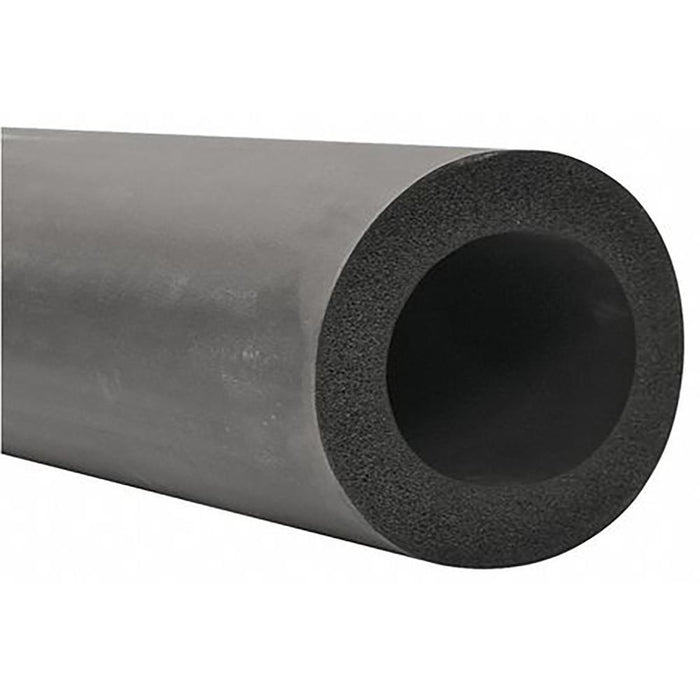

Aeroflex AC7812 Aerocel 7/8 inches ID X 1/2 inches AC Insulation Tube - 6 feet

Product Description

The AEROFLEX AC7812 Aerocel insulation tube, measuring 7/8" ID X 1/2", comes in 6' sections. This closed-cell elastomeric foam pipe insulation easily slides over new piping or can be slit for existing installations. It features a proprietary blend of non-polar EPDM-rubber for thermal performance and moisture protection. Nominal 1/2" wall (25/50 rated).

• Service temperature ranges from -297 to 257 deg F (-182 to +125 deg C)
• Features a built-in vapor barrier and is fire resistant
• Minimal cracking with weather and UV resistance

Product Highlights

The AEROFLEX AC7812 Aerocel insulation tube provides thermal performance and protection against moisture and environmental stresses.

Product Information

Standard Information

• Brand: AEROFLEX
• Manufacturer Part Number: AC7812

Technical Specifications

• Inside Diameter: 7/8 in
• Iron Pipe Size: 1/2 in
• Wall Thickness: 1/2 in
• Color: Black
• Specific Gravity: 0.04-0.06
• Service Temperature: -297 to 257 deg F (-182 to +125 deg C)
• Thermal Conductivity: 0.245 Btu-in/hr-sq-ft-deg F at Mean temp 75 deg F
• Water Absorption: 0.2% by volume Max
• Water Vapor Permeability: 0.03 perm-in
• Flammability: Self-extinguishing
• Flame Spread Index: 25
• Smoke Developed Index: 50
