Aeroflex AC3834 3MNEAOP3/8X3/4 3/8 in ID 3/4 in wall 252 ft length

Product Description

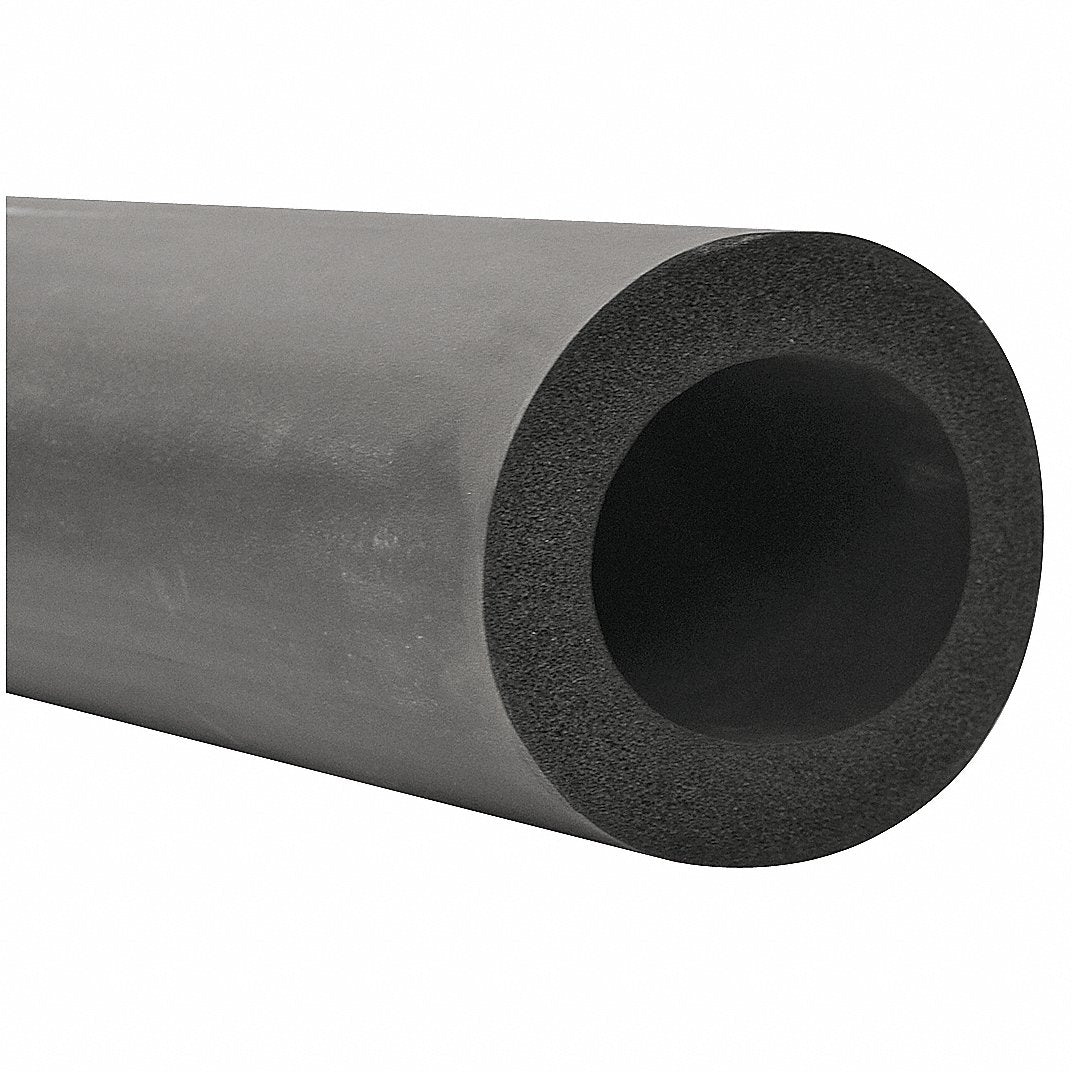

The AEROFLEX AC3834 is a closed-cell elastomeric foam pipe insulation designed for thermal performance and moisture protection. This insulation, made from a proprietary non-polar EPDM-rubber blend, ensures consistent, long-lasting performance. It can be easily slid over new piping installations or slit to snap around existing pipes. With a 3/8 inch inside diameter, 3/4 inch wall thickness, and 252 ft length, it meets energy code and condensation control requirements.

• Service temperature range from -297 to 257 deg F (-182 to +125 deg C).
• Features a low thermal conductivity of 0.245 Btu-in/hr-sq-ft-deg F at 75 deg F mean temperature.
• Includes a built-in vapor barrier, self-extinguishing flammability, and fire-resistant properties.

Product Highlights

Closed-cell EPDM-rubber insulation provides consistent thermal performance, moisture protection, and ease of installation for new or existing piping systems.

Product Information

Standard Information

• Brand: AEROFLEX
• Manufacturer Part Number: AC3834

Technical Specifications

• Color: Black
• Inside Diameter: 3/8 in
• Iron Pipe Size: 1/8 in
• Length: 252 ft
• Wall Thickness: 3/4 in
• Specific Gravity: 0.04-0.06
• Service Temperature: -297 to 257 deg F (-182 to +125 deg C)
• Thermal Conductivity: 0.245 Btu-in/hr-sq-ft-deg F at Mean temp 75 deg F
• Water Absorption: 0.2% by volume Max
• Water Vapor Permeability: 0.03 perm-in
• Weather and UV Resistance: Minimal Cracking
• Flammability: Self-extinguishing
• Fire Resistant: Yes
• Flame Spread Index: 25
• Vapor Barrier: Built-in
• Smoke Developed Index: 50
