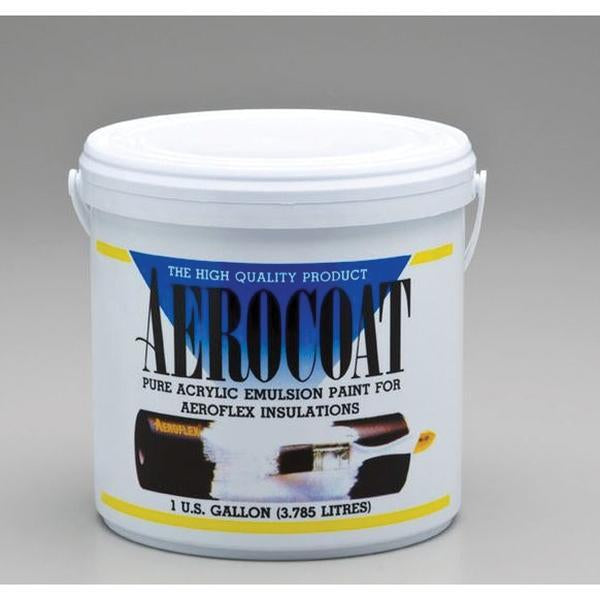

Aeroflex 948-acgw Insulation Coating 1 Gallon Uv Protection

Product Description

The AEROFLEX 948-acgw is a water-based acrylic latex coating designed to protect flexible foam insulation in exterior applications. It forms a durable, semi-gloss white finish that shields insulation from UV degradation and weathering. Formulated as a pure acrylic emulsion, it complies with US energy codes that mandate painted protection for insulation exposed to outdoor environments. One gallon covers up to 400 square feet. Dry time is 4 hours, with a full cure at 24 hours. Licensed HVAC technicians and mechanical insulation contractors use this coating as the finishing step on exterior pipe and duct insulation systems.

This coating is suited for exterior mechanical insulation installations where code compliance and UV resistance are required. It is applied over Aeroflex insulation products on outdoor refrigerant lines, chilled water piping, and similar exterior mechanical systems. The minimum application temperature is 50 degrees F. It can be applied by brush or roller, making it practical for both straight runs and irregular surfaces. The one-year shelf life applies to properly stored, unopened containers.

Key Features

• Pure acrylic emulsion formula provides UV resistance for exterior insulation
• Complies with US energy codes requiring painted protection on outdoor insulation
• Covers up to 400 square feet per gallon
• 4-hour dry time and 24-hour full cure
• Applicable by brush or roller for versatile field use
• Semi-gloss white finish with a VOC content of 116.2 g/L

Compatibility

Designed as a protective topcoat for Aeroflex flexible foam insulation products used in exterior mechanical applications.

Installation Notes

Apply only when ambient and surface temperatures are at or above 50 degrees F. Do not apply to wet or contaminated insulation surfaces. Allow adequate ventilation during and after application. Follow local mechanical and energy codes for required coating thickness and coverage on exterior insulation systems.

Technical Specifications

• Net Content: 1 gallon
• Form: Liquid
• Base Type: Water
• Color: White
• Finish: Semi-Gloss
• Coverage Area: 400 square feet per gallon
• Dry Time: 4 hours
• Curing Time: 24 hours
• Minimum Application Temperature: 50 degrees F
• VOC Content: 116.2 g/L
• pH Range: 8.5 to 10
• Density: 1.15 to 1.25 kg/L
• Composition: Propylene Glycol, Titanium Oxide, Acrylic Polymer, Aqua Ammonia, 2,2,4-Trimethyl-1,3-Pentanediol Monoisobutyrate, Water
• Application Method: Brush, Roller
• Shelf Life: 1 year

Standard Information

• Brand: AEROFLEX
• Manufacturer Part Number: 948-acgw
