Aeroflex 742-AC7834SSPT aerocel 7/8 x 3/4ss

Product Description

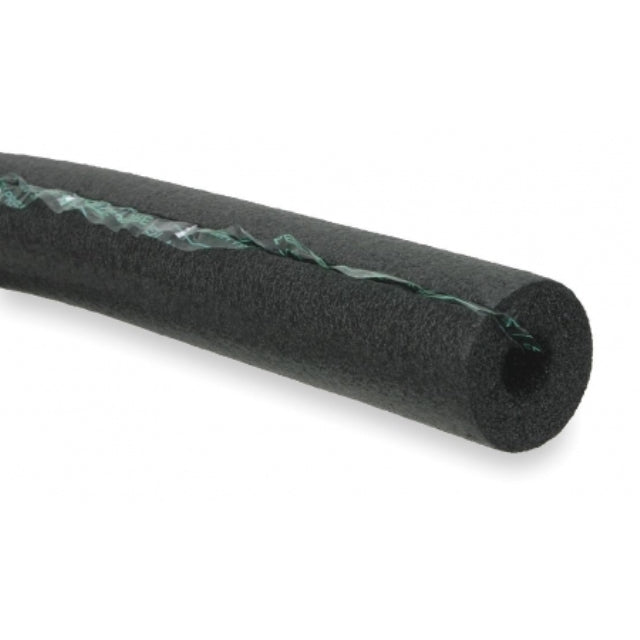

The AEROFLEX 742-AC7834SSPT is a closed-cell elastomeric foam pipe insulation with a self-seal, dual-tape closure system. Its non-polar EPDM-rubber blend ensures consistent thermal performance and protection against moisture and environmental stresses. It is available in a wide range of sizes and thicknesses to meet energy code and condensation control requirements.

• Minimal cracking weather and UV resistance
• Self-extinguishing flammability
• Built-in vapor barrier

Product Highlights

Closed-cell elastomeric foam pipe insulation with self-seal, dual-tape closure system for thermal performance and moisture protection.

Product Information

Standard Information

• Brand: AEROFLEX
• Manufacturer Part Number: 742-AC7834SSPT
• Country of Origin: USA

Technical Specifications

• Specific Gravity: 0.04-0.06
• Service Temperature: -297 to 257 deg F (-182 to +125 deg C)
• Thermal Conductivity: 0.22 to 0.25 Btu-in/hr-sq-ft-deg F
• Max Water Absorption: 0.2% by volume
• Water Vapor Permeability: 0.03 perm-in
• Density: 3.0 to 6.0 sq-ft/lb
• Flame Spread Index: 25
• Smoke Developed Index: 50
• Application: Used to Retard Heat Gain or Loss and to Control Condensation Formation on Cold Water Plumbing, Chilled Water and Refrigeration Lines
• Facing Type: Self Seal Lap
• For Use With: 1/2 in Pipe
• Inside Diameter: 7/8 in
• Insulation Thickness: 3/4 in
• Iron Pipe Size: 1/2 in IPS
• Item Name: Elastomeric Pipe Cover
• Length: 6 ft
• Material: Elastomeric
• Special Features: Thermal
• Sub Brand: AC SSPT
• Temperature Rating: -297 to 220 deg F
• Water Vapor Sorption: 0.2 %
• Nominal ID: 7/8" In
• Type: Pre-Slit
• Wall Thickness: 3/4" In
• Manufacturer Product Family: AEROFLEX Self-Seal Tube
• Manufacturer Brand: AEROFLEX®
• Country of Origin: USA
• U/M: Linear Foot
• Outside Diameter: 7/8"
• Insulation Thickness(in): 3/4"
• K-Value: 0.245
• Minimum Service Temperature F: -297
• Maximum Service Temperature F: 257
• Fire Rating: 25/50
• Item Detail: Self-Seal W/Lap
• Closure Type: (SSL) Self-Seal Tape
• Pipe Size: 7/8"
